Konica Minolta bizhub PRO 920 [467/980] Shot indication time

Utility <User Setting>

bizhub PRO 920 17-17

3 1 SHOT Indication Time

Select the SHOT indication time to be displayed in the message indication

area of the touch panel, such as "Original size A4".

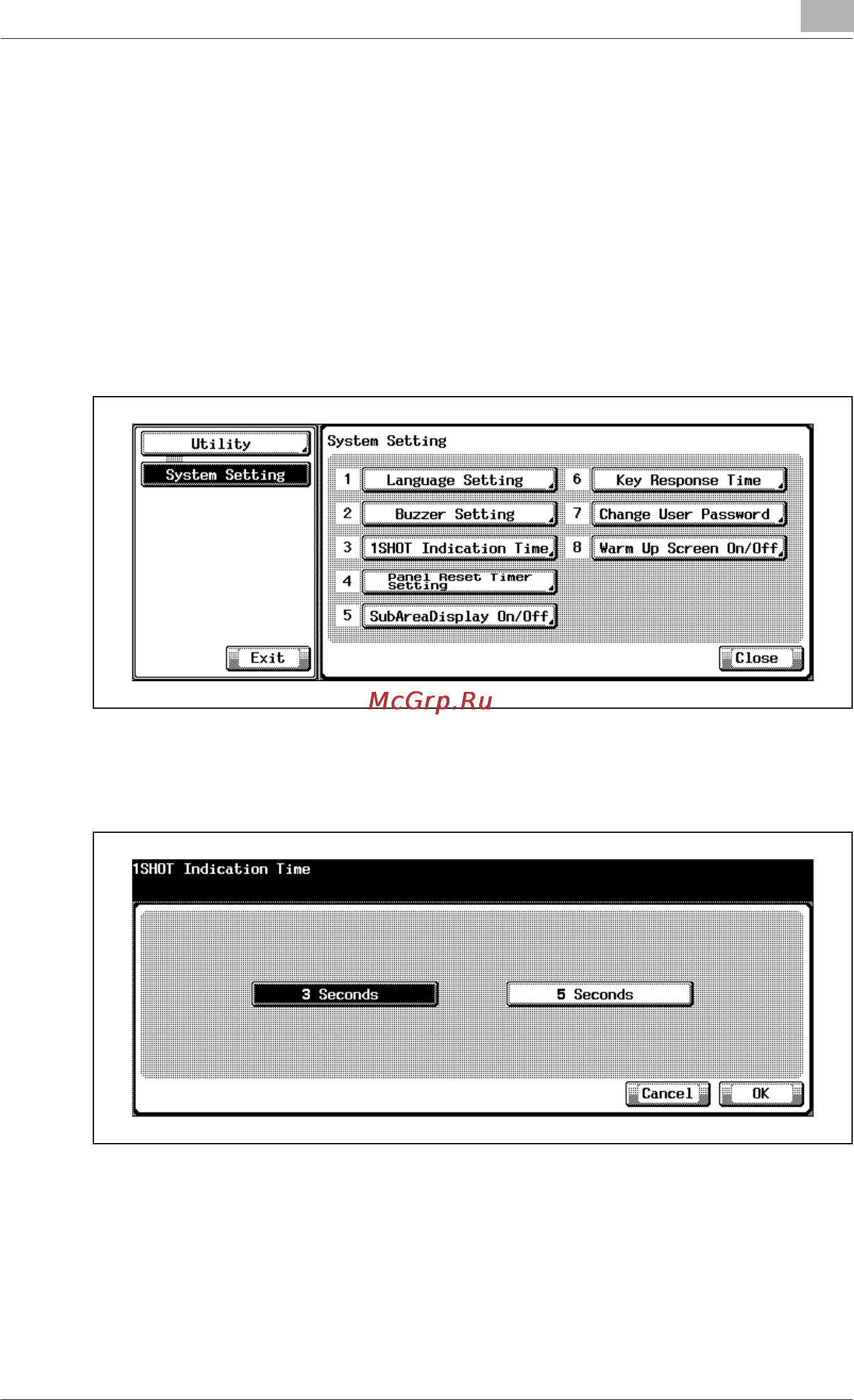

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [1 System Setting].

The System Setting Screen will be displayed.

3 Touch [3 1 SHOT Indication Time].

The 1 SHOT Indication Time Screen will be displayed.

4 Touch [3 seconds] or [5 seconds] to highlight it.

5 Touch [OK] to complete the setting and return to the System Setting

Screen.

6 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
