Utility <User Setting>

17-16 bizhub PRO 920

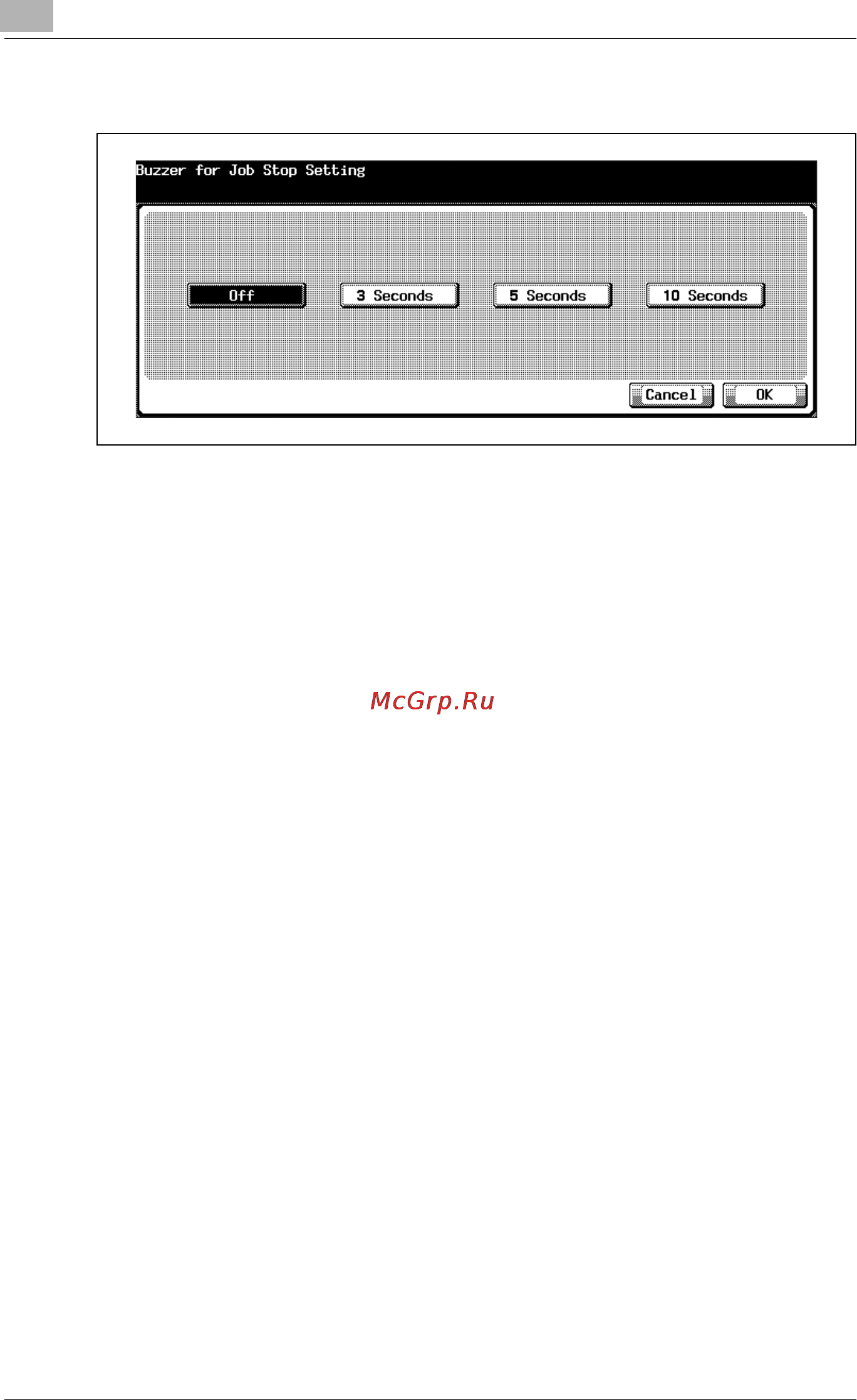

5 Select the desired time to highlight it.

6 Touch [OK] to complete the setting and return to the Buzzer Setting

Screen.

If further changes are required, touch the desired key.

7 Touch [Utility] to restore the Utility Screen.
