Konica Minolta bizhub PRO 920 [469/980] Sub area display on off

Utility <User Setting>

bizhub PRO 920 17-19

5 Sub Area Display On/Off

Select the sub area display in the left side of the initial screen.

Setting options: Setting value/Job list

Detail

If the direct selection screen is specified as the Basic Screen, the [5 Sub

Area Display On/Off] key will be grayed out to show unavailability.

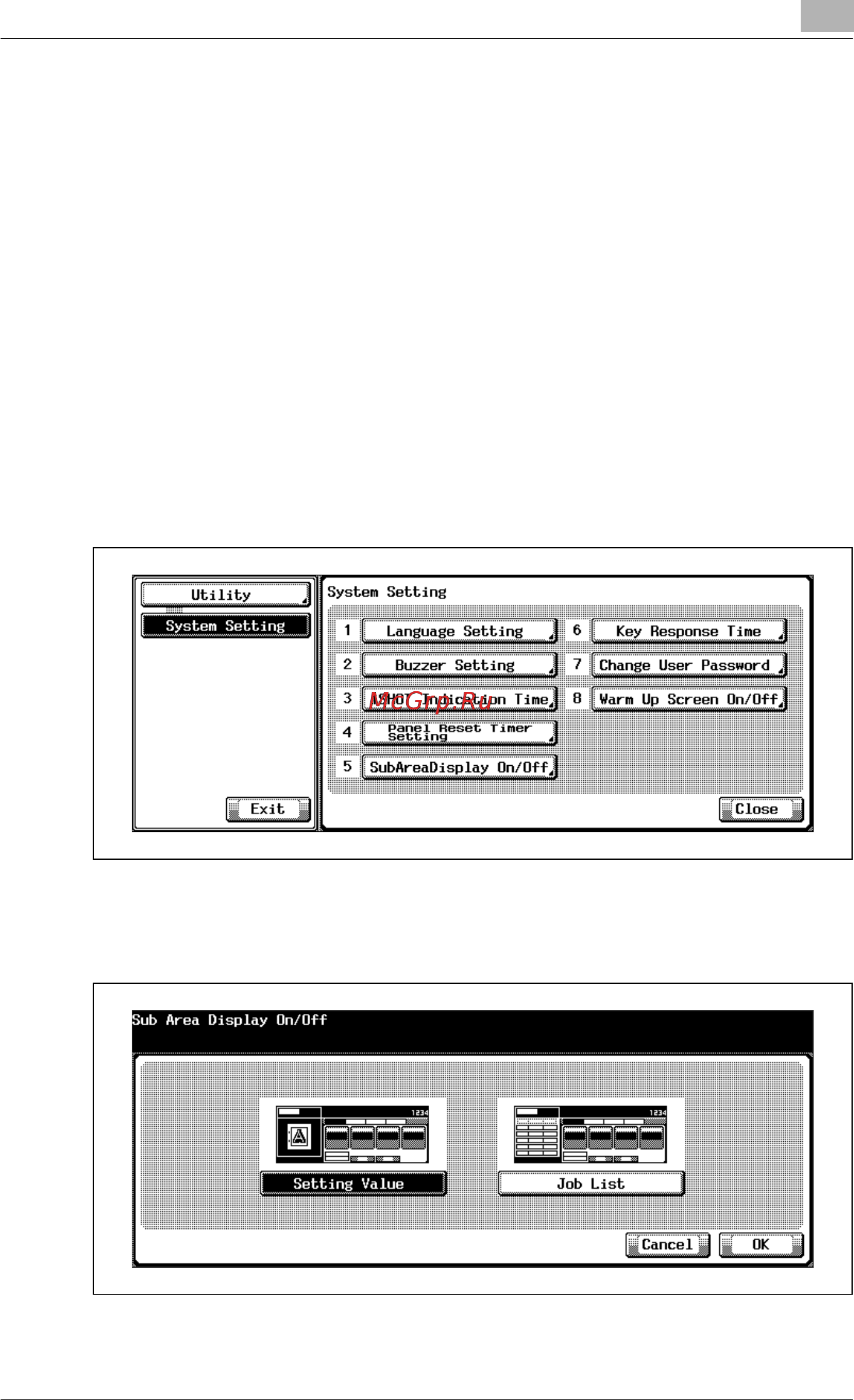

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [1 System Setting].

The System Setting Screen will be displayed.

3 Touch [5 Sub Area Display On/Off].

The Sub Area Display On/Off Screen will be displayed.

4 Select the desired sub screen to highlight it.
