Konica Minolta bizhub PRO 920 [503/980] Tandem setting 4tandem selection after job completion

Utility <User Setting>

bizhub PRO 920 17-53

5 Tandem Setting>4Tandem Selection after JOB Completion

Select to continue or release the tandem mode after the current tandem job

is completed.

Detail

By default, the Tandem Setting key is not displayed. Contact your service

representative.

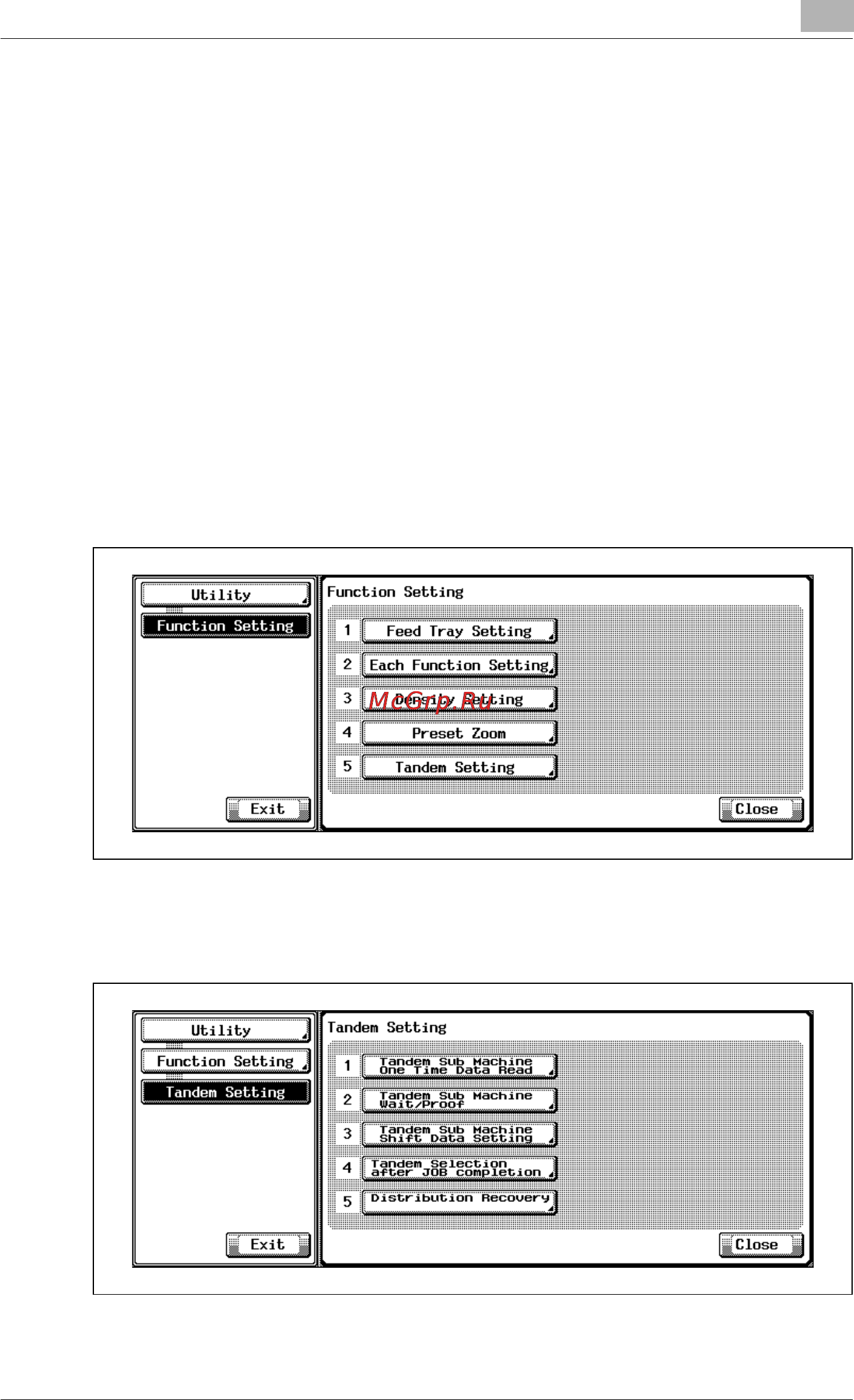

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

The Function Setting Screen will be displayed.

3 Touch [5 Tandem Setting].

The Tandem Setting Screen will be displayed.

4 Touch [4 Tandem Selection after JOB completion].

The Tandem Selection after Job Completion Screen will be displayed.
