![Konica Minolta bizhub PRO 920 [566/980] Expert adjustment non image area erase setting](/img/pdf.png)
Konica Minolta bizhub PRO 920 [566/980] Expert adjustment non image area erase setting
![Konica Minolta bizhub PRO 920 [566/980] Expert adjustment non image area erase setting](/views2/1122005/page566/bg236.png)
18
Utility <Administrator Setting>
18-42 bizhub PRO 920
6 Expert Adjustment>Non Image Area Erase Setting
Select to delete or not the outside area of the original from the following three
ways:
-
On - Always:
Set the machine any time to delete the outside area of the original.
-
On - APS/AMS Only:
Set the machine to delete the outside area of the original only when APS
or AMS is activated.
-
Except Orig. Glass (1:1):
Set the machine to delete the outside area of the original except when
copying in real size on the original glass.
2
Note
When [Oblique Erase] or [Rectangle Erase] does not function properly,
touch [Auto Erase].
1 Press the [Utility/Counter] to display the Utility Screen.
2 Touch [6 Administrator Setting], enter the administrator password, and
then touch [OK].

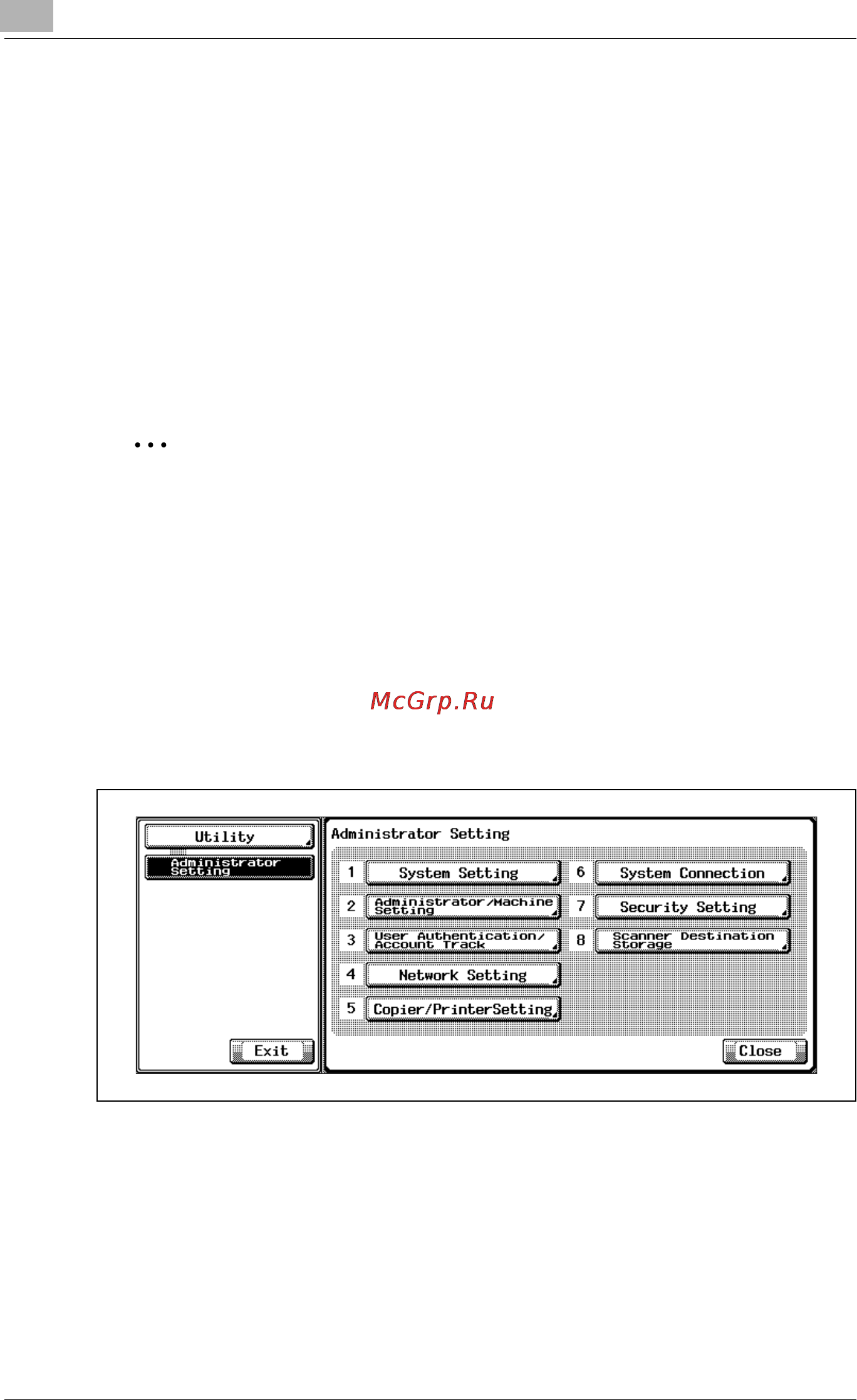

The Administrator Setting Screen will be displayed.
3 Touch [1 System Setting].
The System Setting Screen will be displayed.
