Utility <Administrator Setting>

bizhub PRO 920 18-43

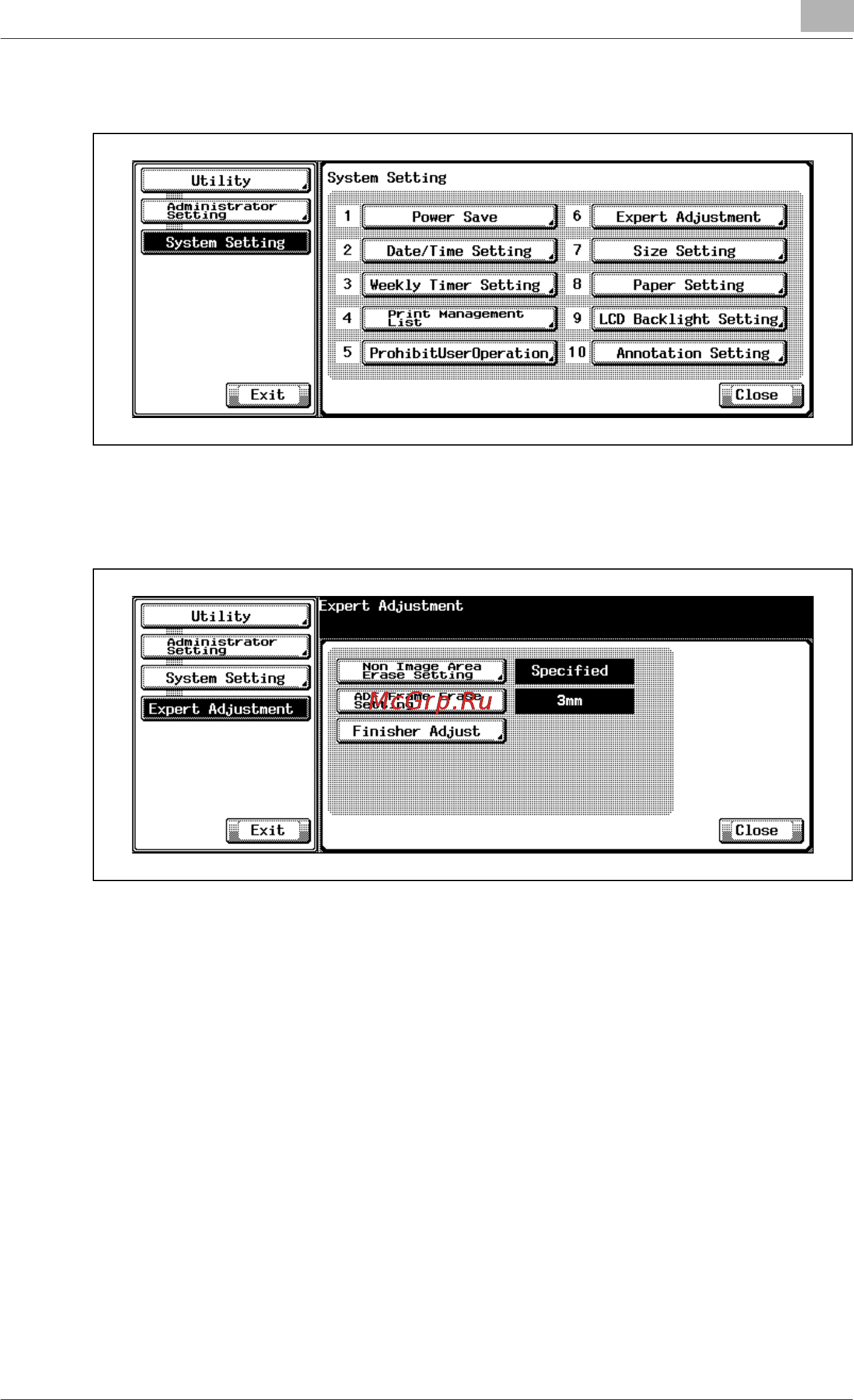

4 Touch [6 Expert Adjustment].

The Expert Adjustment Screen will be displayed.

5 Touch [Non Image Area Erase Setting].

The Non Image Area Erase Setting Screen is displayed.
