Konica Minolta bizhub PRO 920 [284/980] To set shift mode of page margin

Applications

11-48 bizhub PRO 920

To set Shift mode of Page Margin

0 Shift amount: 0 to 250 mm in 1 mm increments

0 Creep: 0 to 50 mm in 1 mm increments

0 Setting in 0.1 mm increments using up/down arrow key is also available.

This setting change can be made on the Utility Screen.

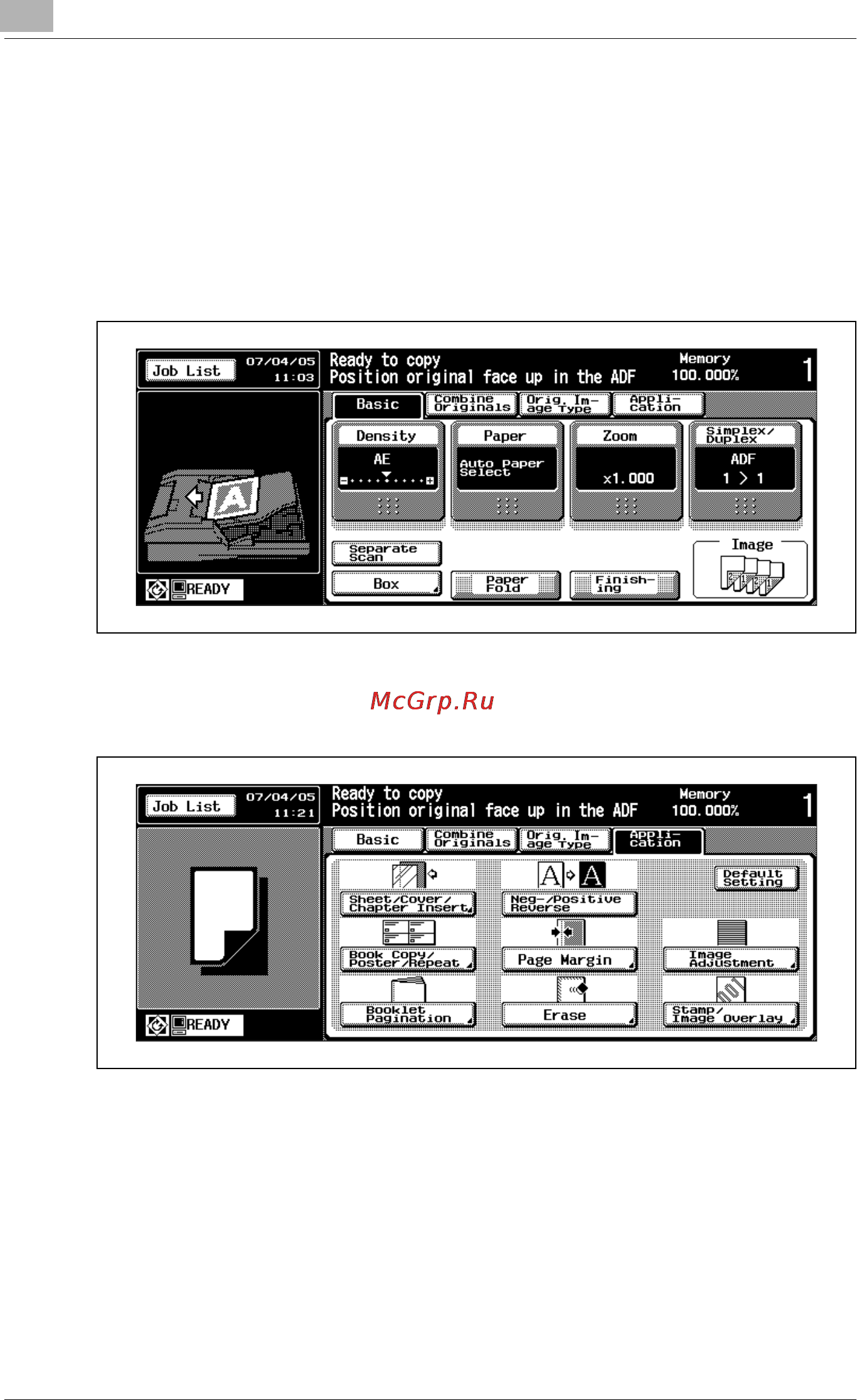

1 Touch [Application].

The Application Screen will be displayed.

2 Touch [Page Margin].

The Page Margin Screen will be displayed.
