Konica Minolta bizhub PRO 920 [587/980] Lcd backlight setting

Utility <Administrator Setting>

bizhub PRO 920 18-63

9 LCD Backlight Setting

Use this function to adjust the backlight of the touch panel.

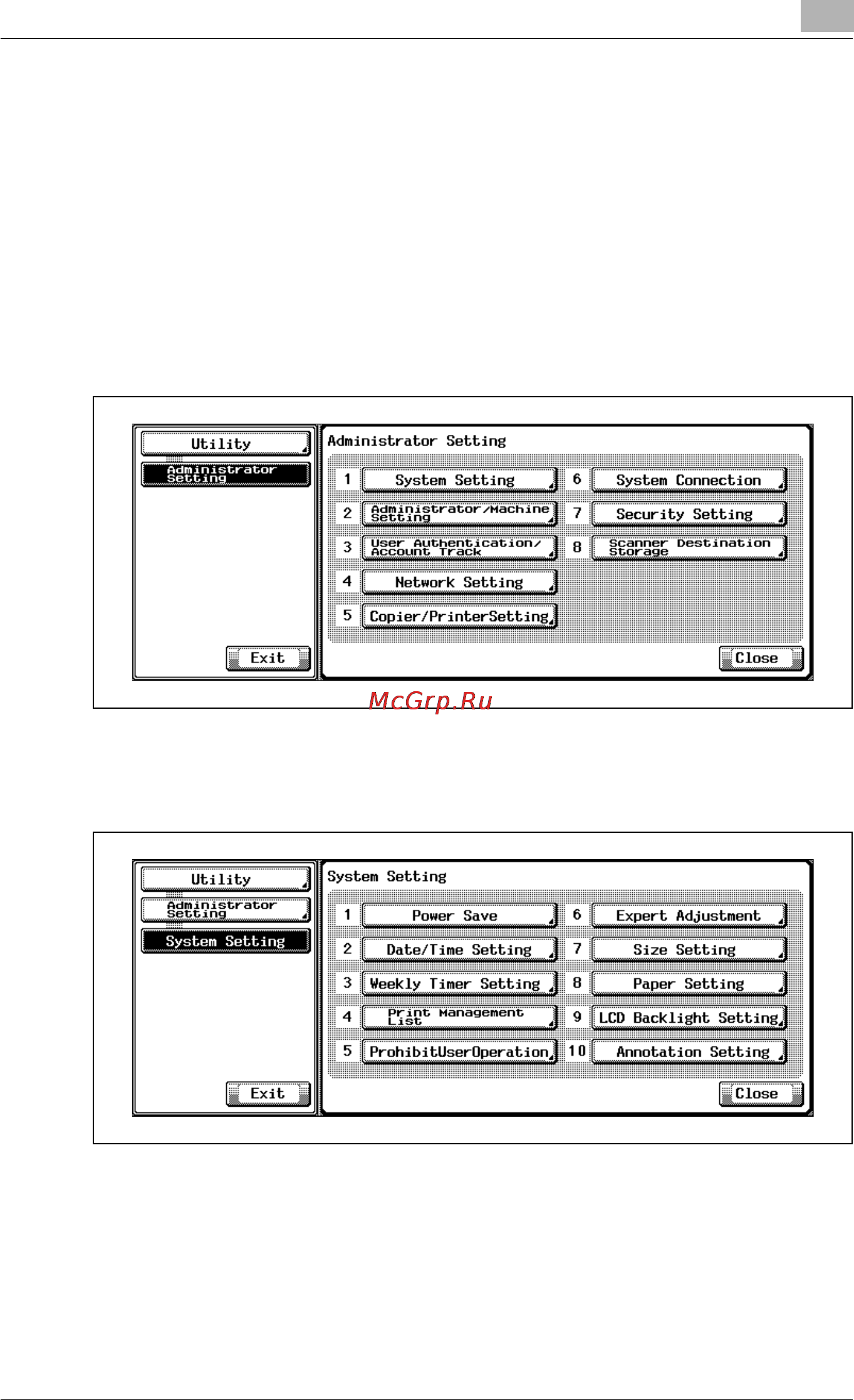

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [1 System Setting].

The System Setting Screen will be displayed.

4 Touch [9 LCD Backlight Setting].

The LCD Backlight Setting Screen will be displayed.
