Preparation for Use
2
bizhub PRO 920 2-15

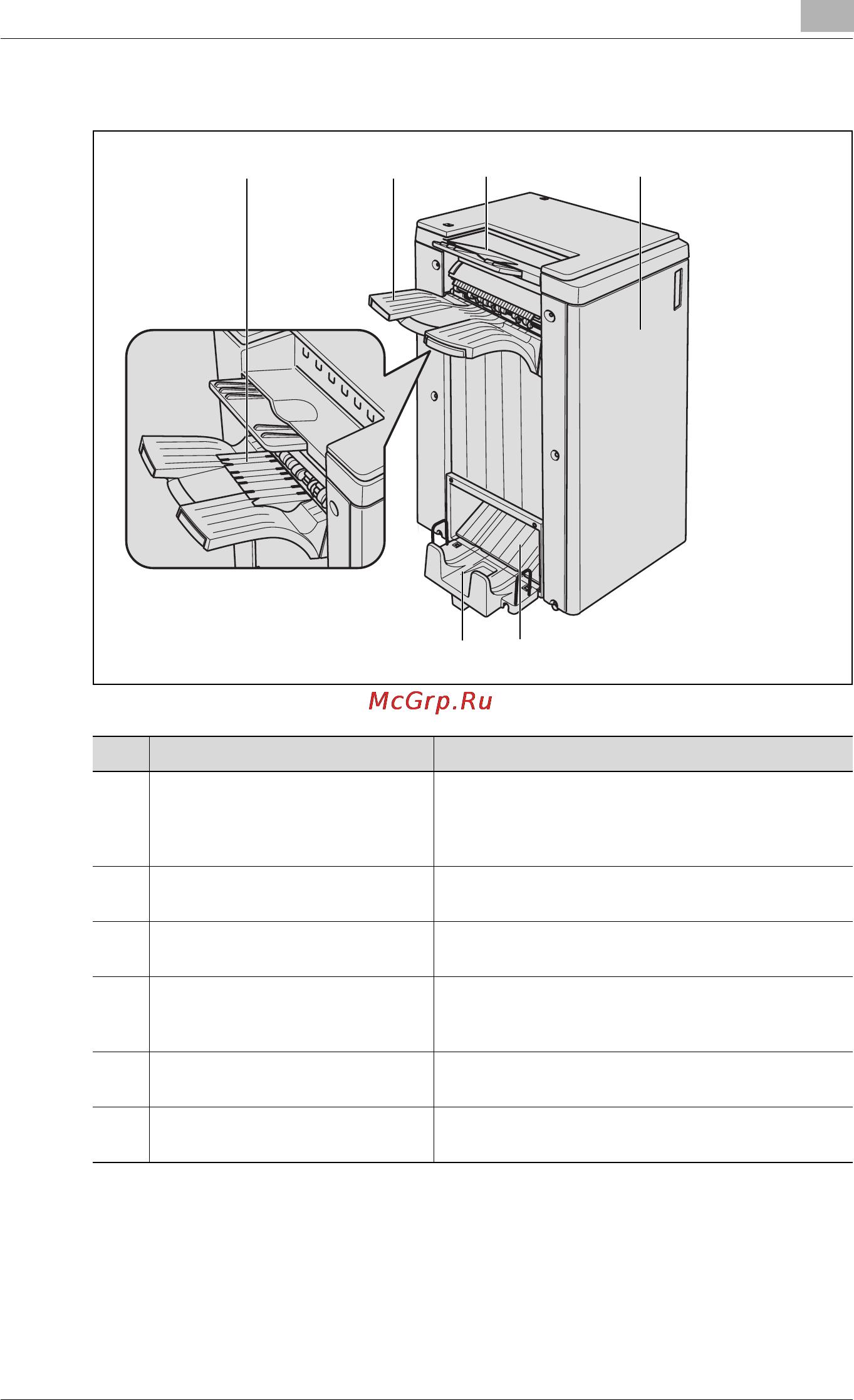

Finisher FS-604 (+ Punch Kit PK-504/505)
Finisher FS-604
456
1
23
No. Name Description
1 Finisher door Opens to the internal finisher to allow replenishing
staples and clearing mishandled paper, and also to
allow removal of waste paper punched out when
Punch kit PK-504/505 is installed.
2 Folding mode outlet Delivers sets output in Half Fold, Fold&Staple, Let-
ter Fold In, or Letter Fold Out mode.
3 Folding mode tray Holds sets output in Half Fold, Fold&Staple, Letter
Fold In, or Letter Fold Out mode.
4 Exit paper guide Used to hold paper to prevent it from being curled
excessively. Normally stored in the guide holder on
the back of the finisher.
5 Primary (main) tray Holds sets output in the selected finishing mode
other than specified above.
6 Secondary (sub) tray Holds sets output in Sort, Group, Face Up, or Face
Down mode.
