bizhub PRO 920 11-9

11.3 Inserting Sheets and Covers (Insert Sheet)

Use Insert Sheet in print mode or blank mode to insert chapter sheets or

separator sheets into the finished set, as well as front and back covers.

The covers and insertions can be specified as copied or blank, and fed from

different tray source for each. Post inserter is also available as tray source if

Post inserter PI-501 option is installed.

Back cover printed

Back cover blank

Printed sheet insertion Blank sheet insertion

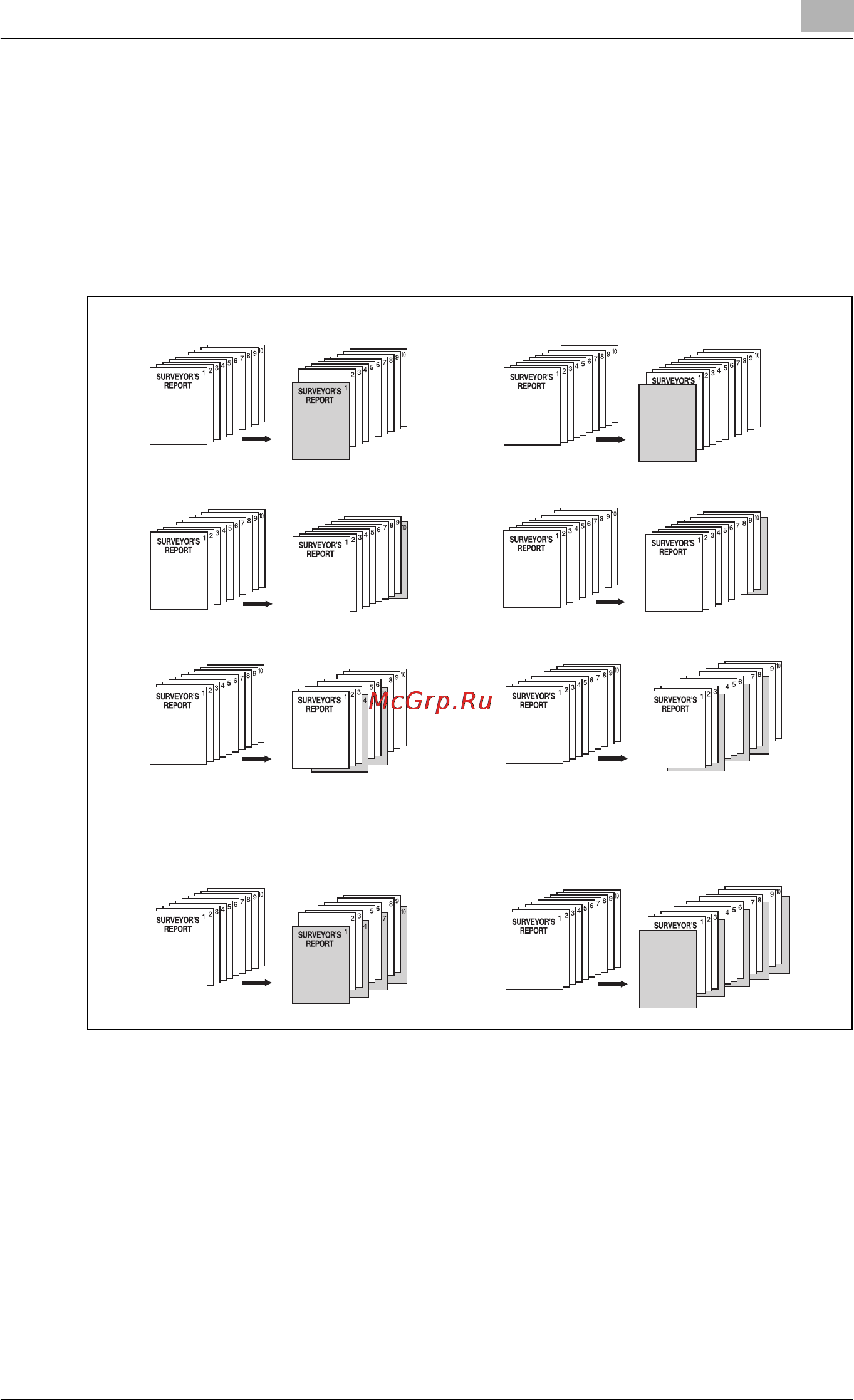

Combination samples:

Front&Back covers printed, and

printed sheet insertion

Front&Back covers blank, and

blank sheet insertion

Front cover printed

Front cover blank
