Konica Minolta bizhub PRO 920 [353/980] Folding copies in three letter fold in letter fold out

Finishing / Paper Fold

bizhub PRO 920 12-21

12.6 Folding Copies in Three (Letter Fold In / Letter Fold

Out)

The Finisher FS-604 can fold A4R or 8.5”×11”R copies in three upon exit.

Choose to print outside the fold (Letter Fold Out) or inside (Letter Fold In).

To fold copies in three

0 Number of folded sheet: Max. 3 sheets

0 Paper size: A4R or 8.5”×11”R

0 Paper weight: 60 to 80 g/m

0 Printed side: Selectable (inside or outside)

0 Output tray: Folding mode tray

0 The output order will be set to 1 to N automatically.

0 Selecting Letter Fold In automatically sets the output face to Face Up,

while Letter Fold Out sets to Face Down.

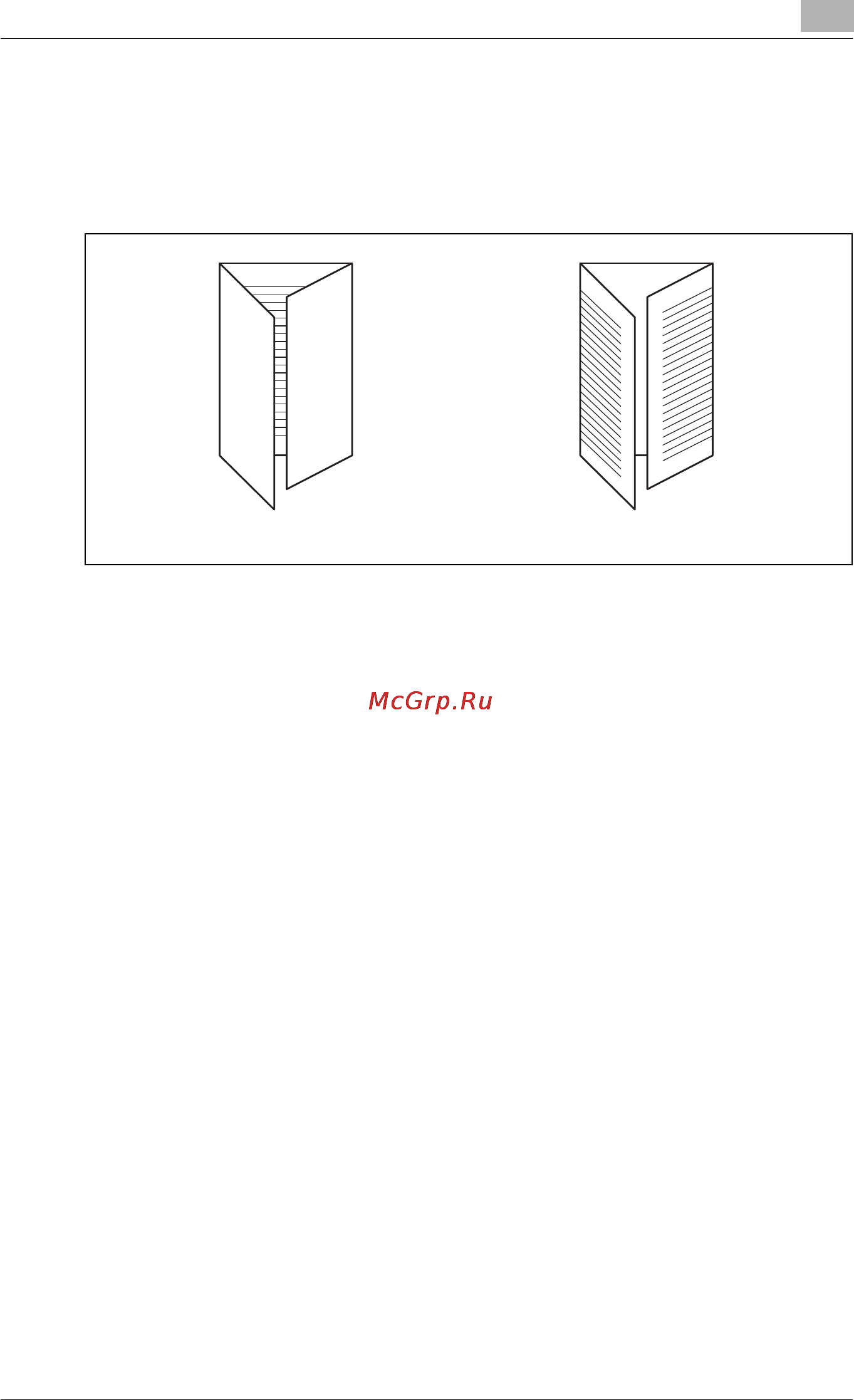

Letter Fold In Letter Fold Out
