Konica Minolta bizhub PRO 920 [665/980] Ip nic setting 7 appletalk

Utility <Administrator Setting>

bizhub PRO 920 18-141

2 IP NIC Setting>7 AppleTalk

Specify the settings for connecting network printer and the AppleTalk

settings.

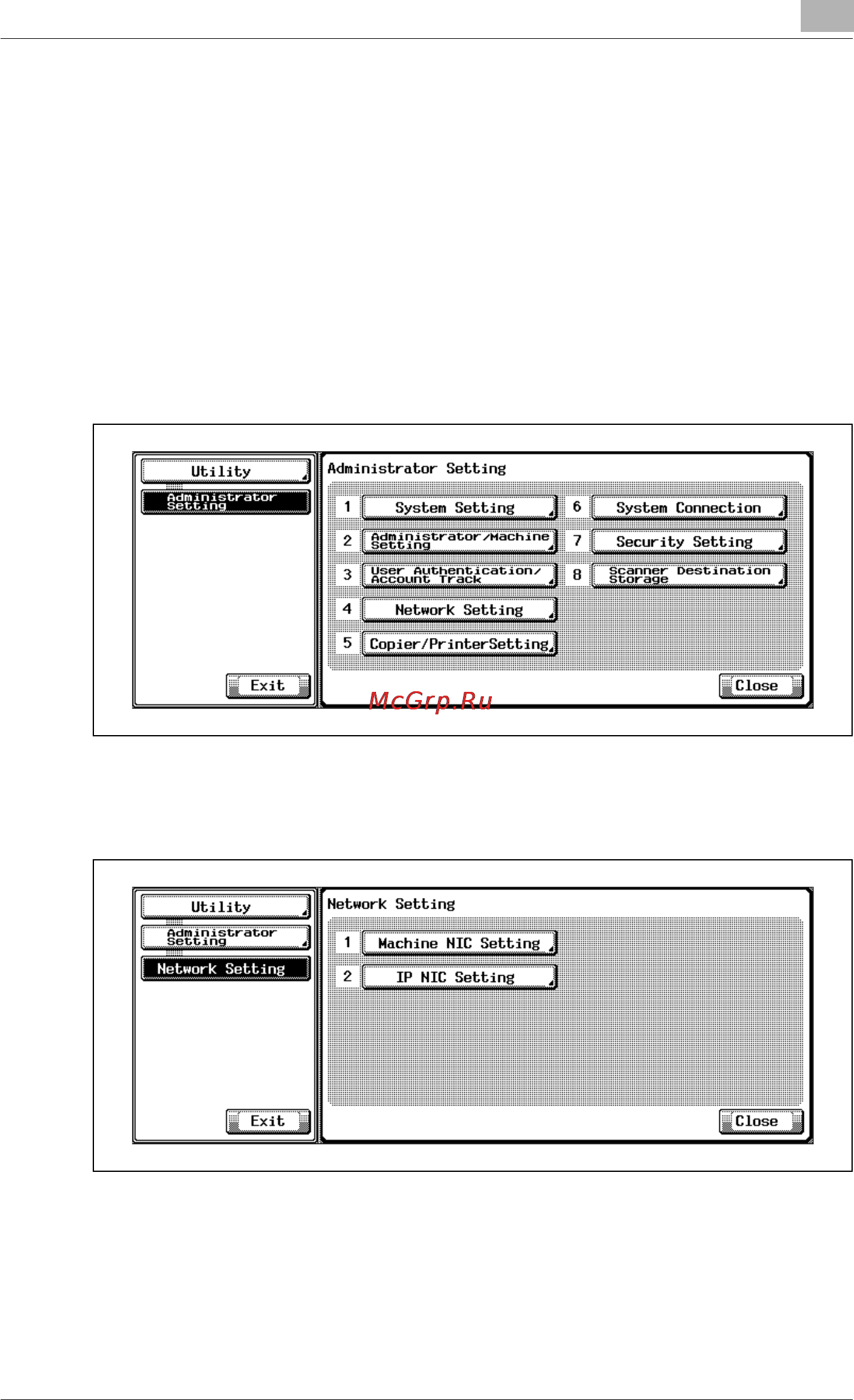

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [4 Network Setting].

The Network Setting Screen will be displayed.

4 Touch [2 IP NIC Setting].

The IP NIC Setting Screen will be displayed.
