Utility <Administrator Setting>

18-142 bizhub PRO 920

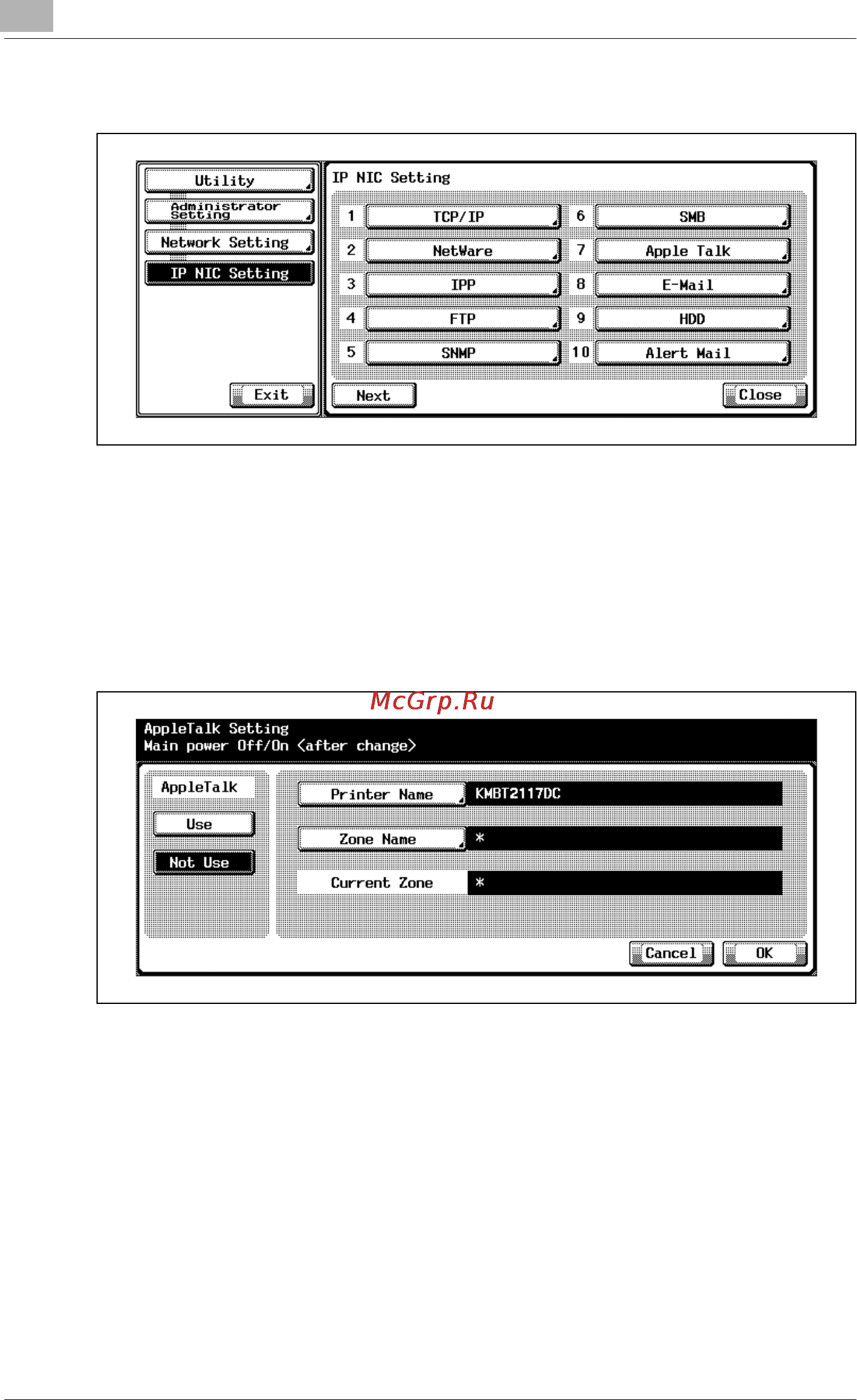

5 Touch [7 AppleTalk].

The AppleTalk Setting Screen will be displayed.

6 For each item, select or enter a required value.

– Appletalk

– Printer Name

–Zone Name

– Current Zone

7 Touch [OK] to return to the IP NIC Setting Screen.

If further changes are required, touch the desired key.

8 After you have changed the settings, turn off the sub power, then turn

off and on the main power.

Detail

When you turn off and on the main power, you need to wait at least 10

seconds to turn on after turning off. If you do not allow a sufficient interval

in between, the machine may not run correctly.
