Preparation for Use
2-14 bizhub PRO 920

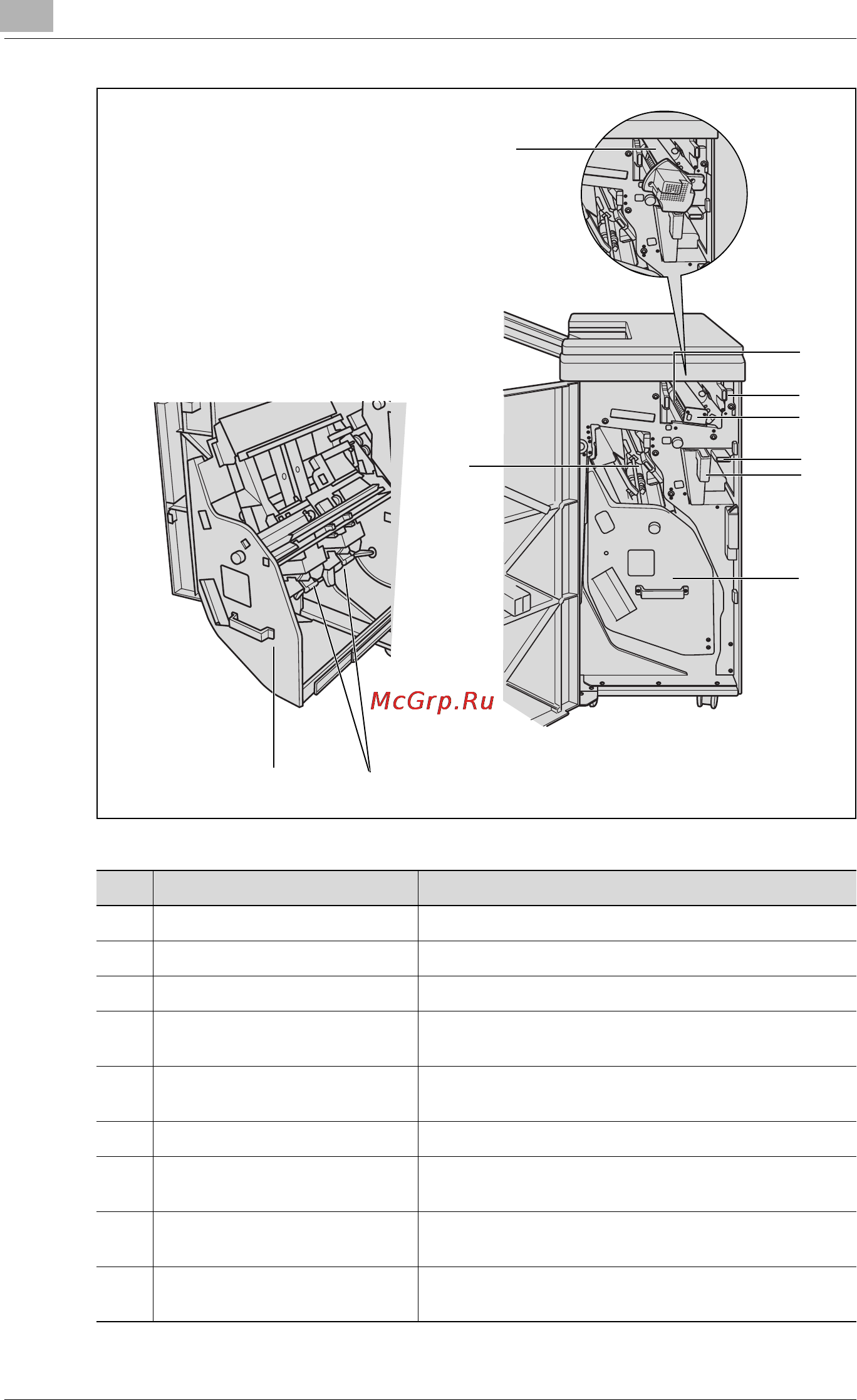

Finisher FS-509
+ Punch Kit PK-504/505
2
4
3
2
1
7
6
9
8
5
No. Name Description
1 Inlet lever Opens downward to remove mishandled paper.
2 Punch kit (option) Punches file holes in output copies.
3 Cover sheet conveyance lever Opens leftward to remove mishandled paper.
4 Secondary (Sub) tray convey-
ance lever
Opens rightward to remove mishandled paper.
5 Stacker conveyance lever Opens down and leftward to remove mishandled pa-
per.
6 Stacker unit Holds stapler.
7 Waste basket (option) Holds waste paper punched out and withdrawn for re-
moval of waste paper.
8 Stacker unit handle Withdraws the unit to allow clearing mishandled paper
or replenishing staples.
9 Cartridge housing Holds staple cartridge and to be removed from the
stacker unit when replenishing staples.
