![Konica Minolta bizhub PRO 920 [219/980] Combine originals](/img/pdf.png)
Konica Minolta bizhub PRO 920 [219/980] Combine originals
![Konica Minolta bizhub PRO 920 [219/980] Combine originals](/views2/1122005/page219/bgdb.png)
Original Setting
10
bizhub PRO 920 10-7
10.2 Combine Originals
Lay Out Several Pages onto One Sheet (Combine Pages)
Use this function to lay out and copy a fixed number (2, 4, or 8) of pages onto
one sheet of copy paper (2 in 1, 4 in 1, or 8 in 1).
0 Use ADF.
0 Auto Zoom is automatically selected. Normally the magnification ratio is
determined according to the paper size fixed for the tray of top priority.
1 Touch [Combine Originals] on the Basic Screen.
The Combine Originals setting menu will be displayed.
2 Touch [2 in 1], [4 in 1] or [8 in 1] under Combine Pages to highlight it.
– Selecting 4 in 1 or 8 in 1, the menu will additionally display two
numbering direction keys.
Touch either [Horizontal] or [Vertical] to specify numbering order of
original layout.
Auto Zoom is automatically selected to make a copy using paper size
loaded in the tray of top priority.

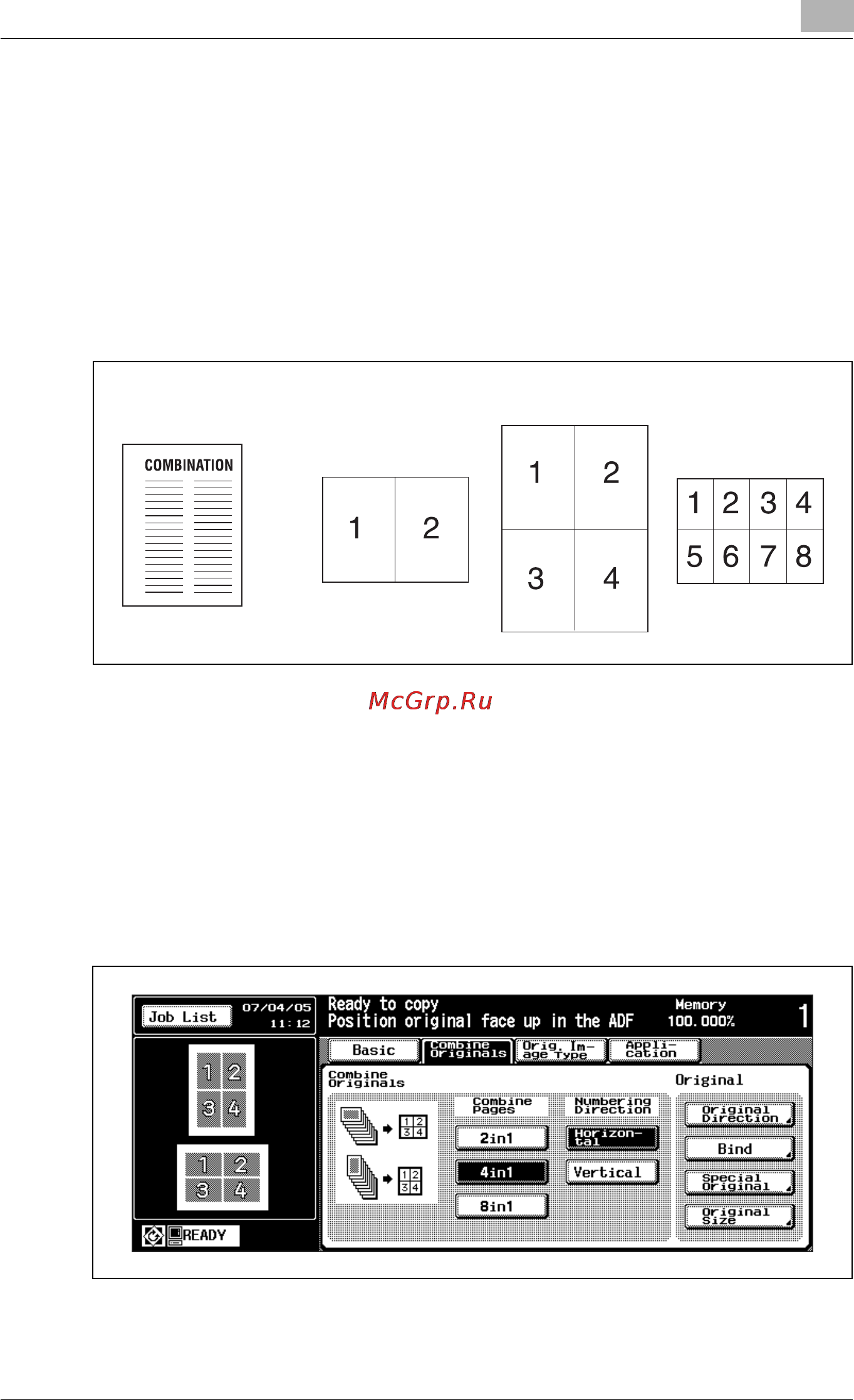

Original 4 in 12 in 1 8 in 1
