Konica Minolta bizhub PRO 920 [133/980] Checking copy count

Maintenance

bizhub PRO 920 6-5

6.2 Checking Copy Count

The Utility Screen allows you to view the current indication of the following

items as a list.

List items:

- Total count

- Feed paper count

- Output paper count

- Printer total count

- Copier total count

- Scanner total count

- PM count, cycle, counter start date

- Developer count, cycle counter start date

- Drum count, cycle counter start date

Check the list, then print it, if desired.

To check and print the counter list

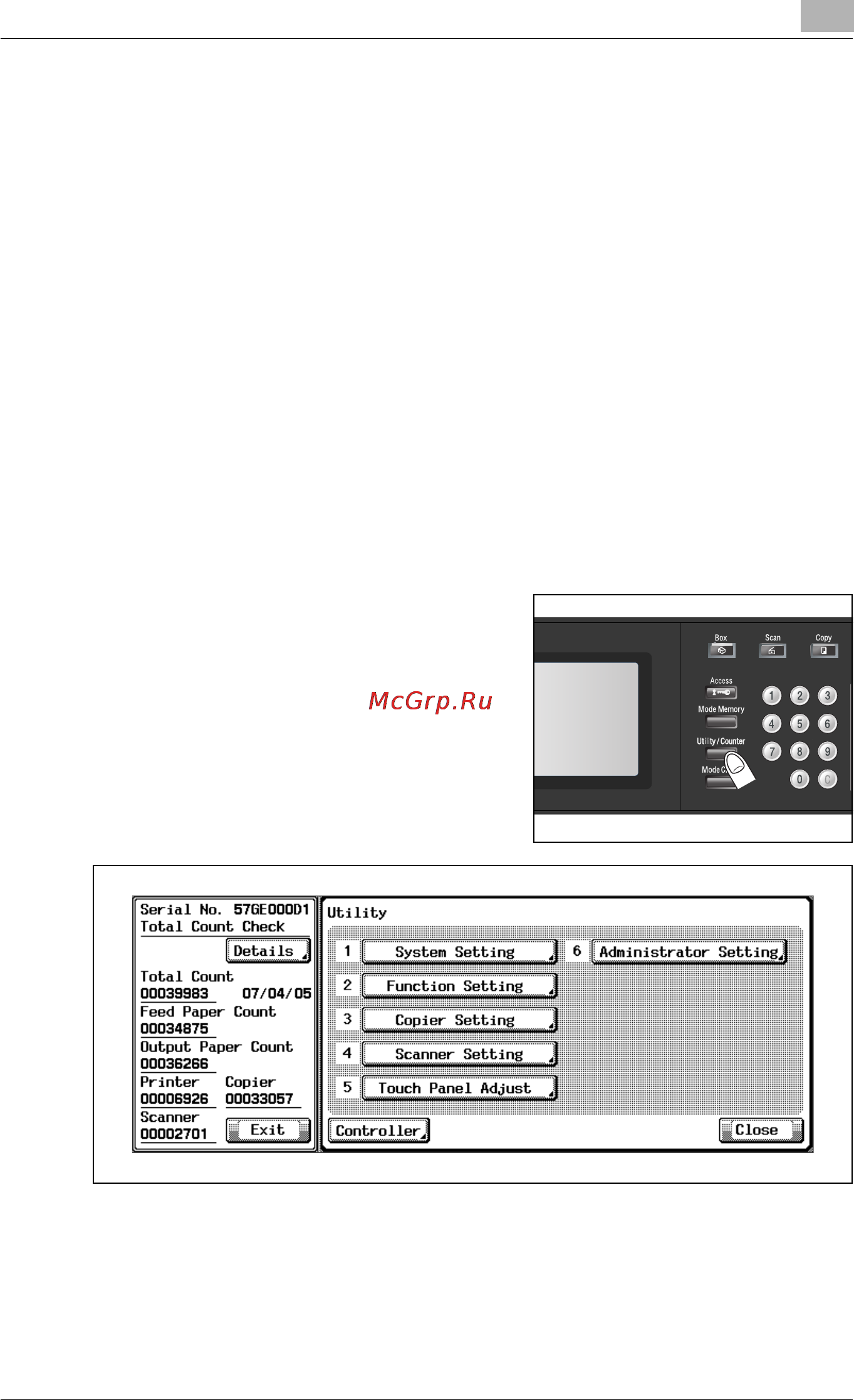

1 Press [Utility/Counter] on the control

panel.

The Utility Screen will be displayed.
