bizhub PRO 920 14-21

14.7 Adjusting Touch Panel Contrast (Contrast)

This function allows you to adjust the contrast of the touch panel.

Detail

The brightness of the touch panel can be adjusted by the administrator.

For details, refer to "9 LCD Backlight Setting" on page 18-63.

To Adjust Contrast

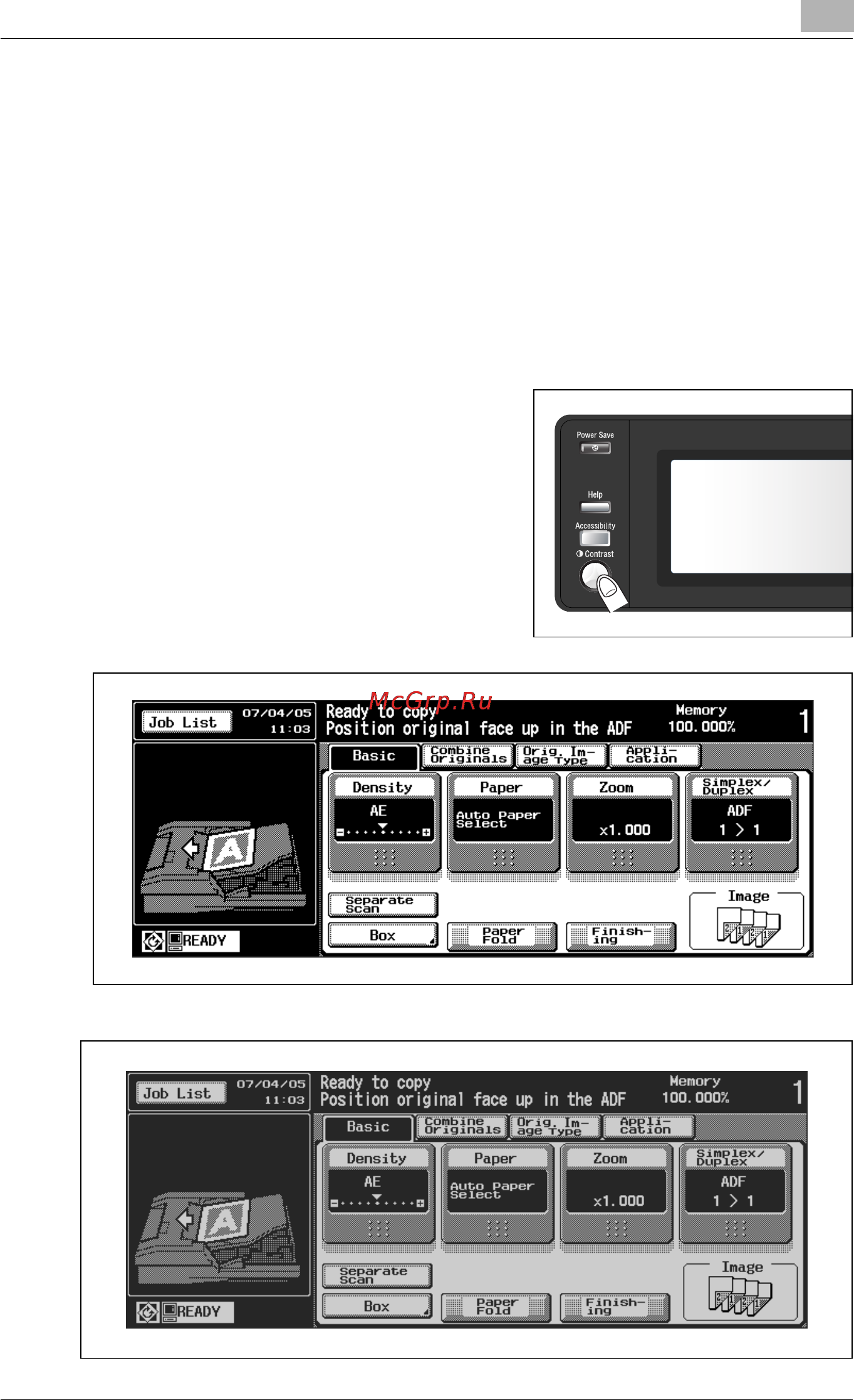

1 Turn the Contrast adjustment dial on

the control panel.

– To increase the contrast, turn the

dial clockwise.

– To decrease the contrast, turn the dial anticlockwise.
