Konica Minolta bizhub PRO 920 [492/980] Density setting 3 photo mode density setting

Utility <User Setting>

17-42 bizhub PRO 920

3 Density Setting>3 Photo Mode Density Setting

Set the density level of Photo Mode to be specified in AE.

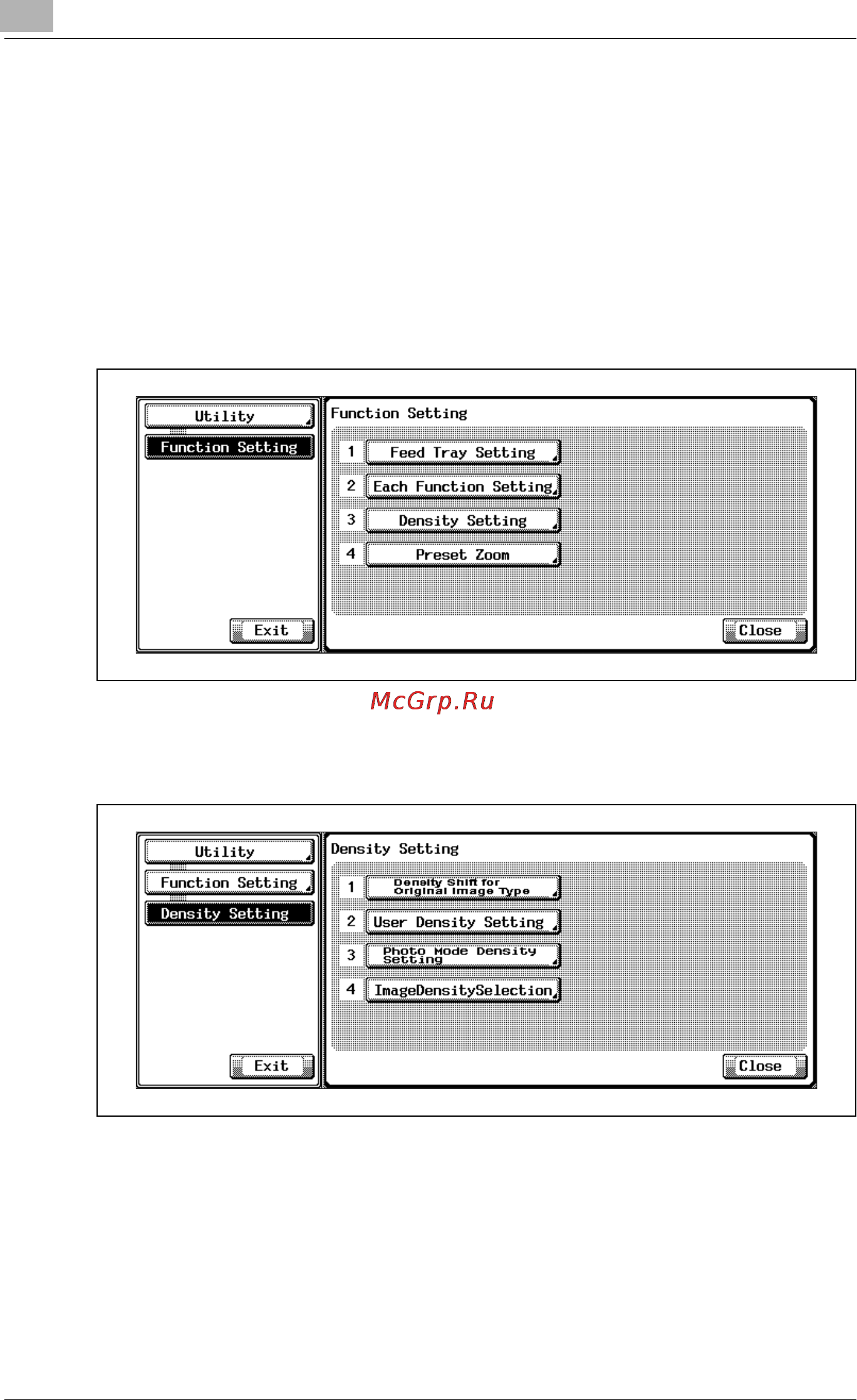

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

The Function Setting Screen will be displayed.

3 Touch [3 Density Setting].

The Density Setting Screen will be displayed.

4 Touch [3 Photo Mode Density Setting].

The Photo Mode Density Setting Screen will be displayed.
