bizhub PRO 920 11-65

11.18 Printing Images Fully to the Edges (Full Scan)

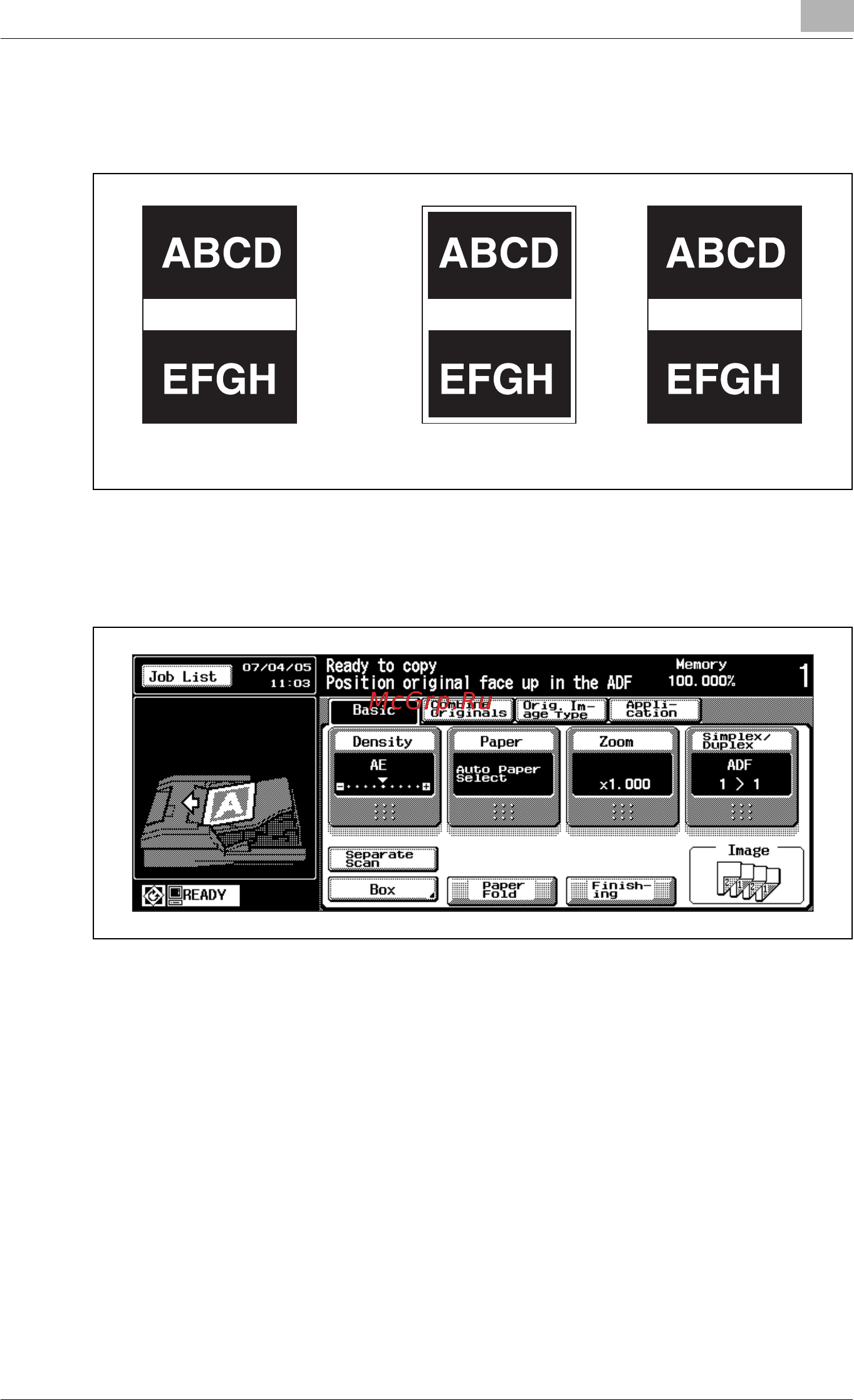

Use this function to make copies printed completely to the edges.

To set Full Scan function

1 Touch [Application].

The Application Screen will be displayed.

Original

Normal copy

Full Scan
