Konica Minolta bizhub PRO 920 [422/980] Change size setting

Paper Setting

15-12 bizhub PRO 920

15.3 Change Size Setting

Use this function to change paper settings according to a specified paper

type.

Detail

To change the paper size of the Tray 4 (Large Capacity Unit), contact your

service representative.

When setting wide size, be sure to specify the precise dimensions of

paper to be used.

Service can set the machine to display the Tray Setting key on the Utility

Screen. Contact your service representative, if desired.

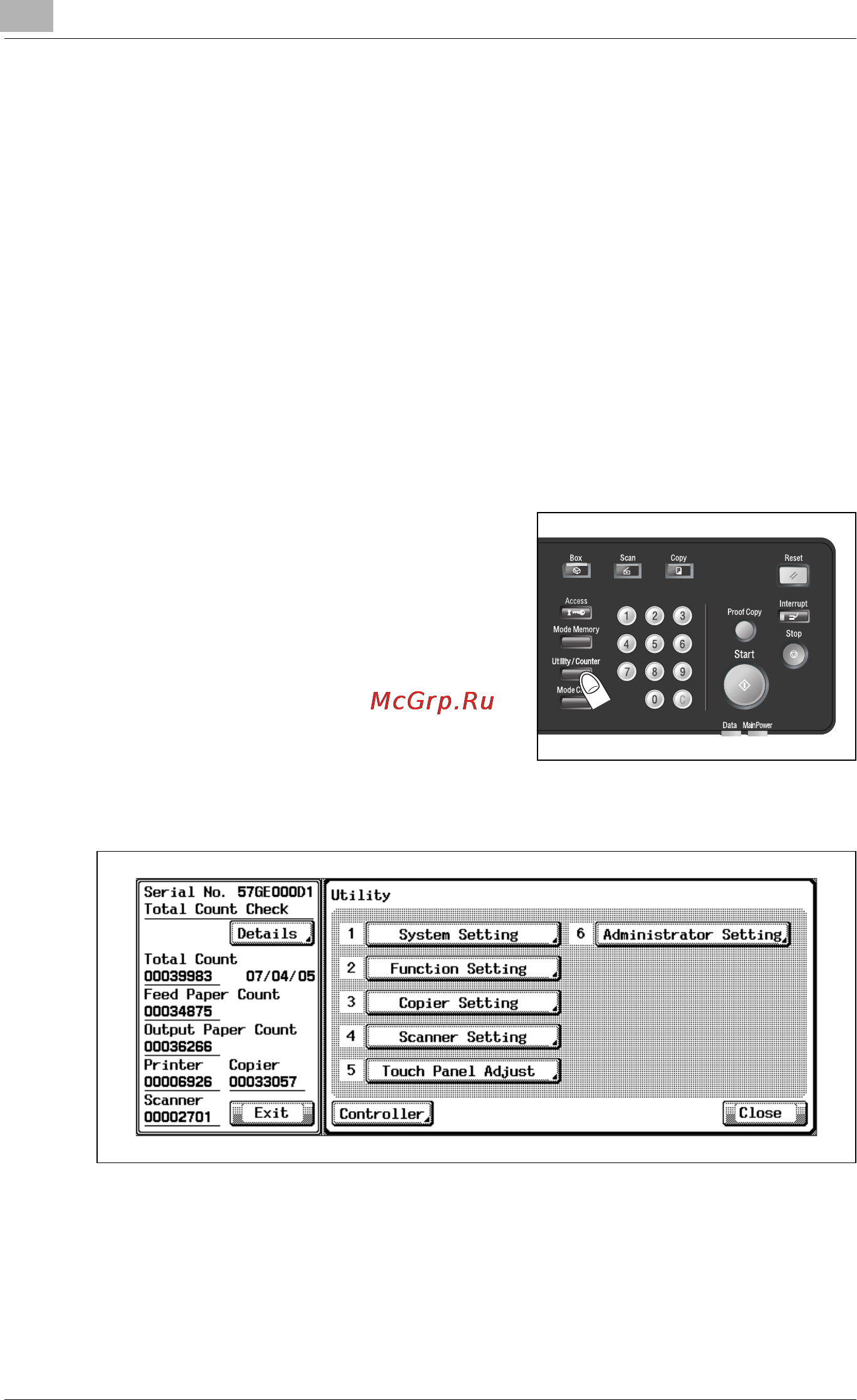

1 Press the [Utility/Counter] on the

control panel.

The Utility Screen will be displayed.

2 Touch [6 Administrator Setting].

The Password Input Screen will be displayed.

When the Password Input Screen is not displayed, proceed to step 4.
