Paper Setting

bizhub PRO 920 15-13

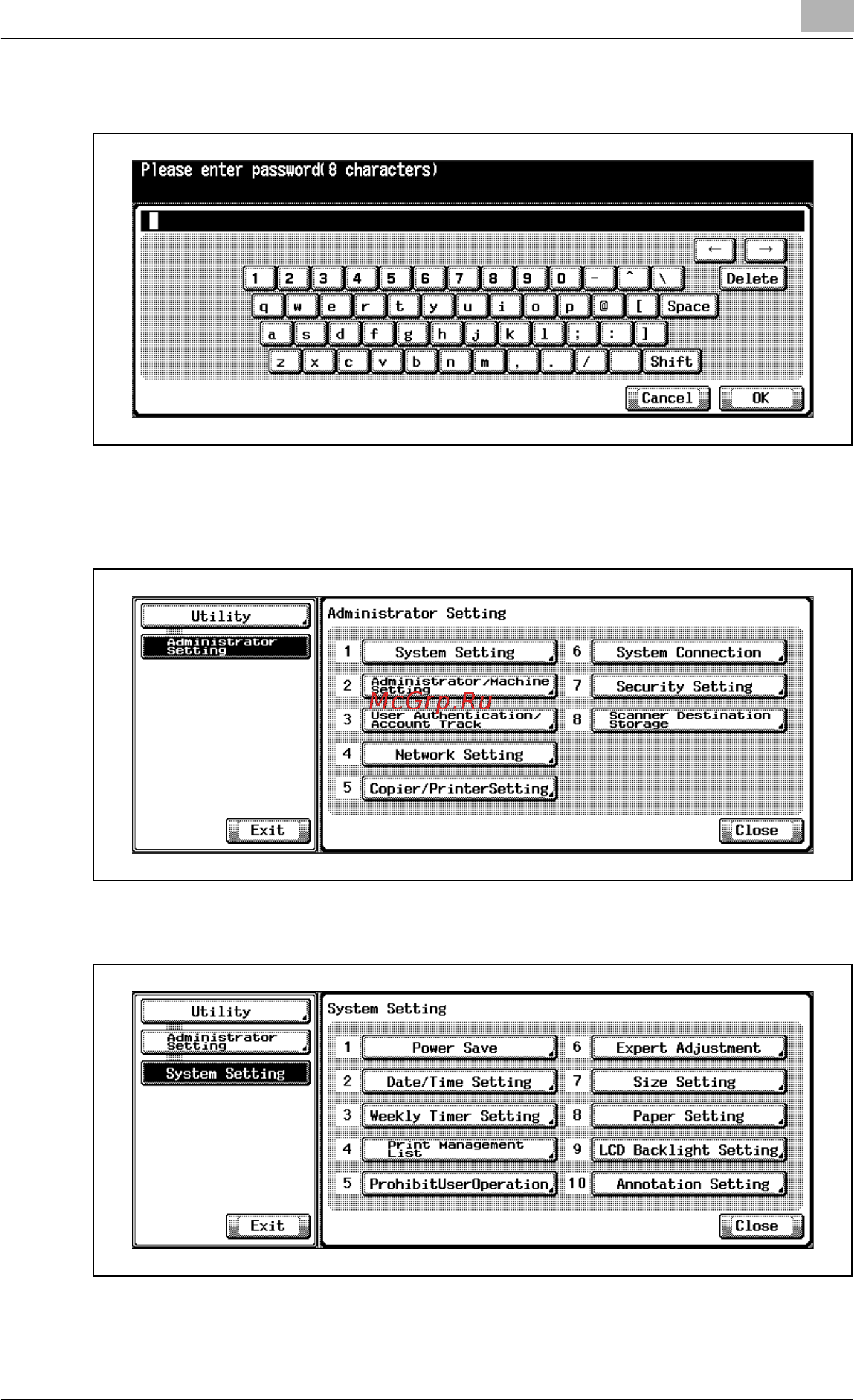

3 Enter the eight-digit administrator password, and then touch [OK].

The Administrator Setting Screen will be displayed.

4 Touch [1 System Setting].

5 Touch [8 Paper Setting].
