Paper Setting

15-14 bizhub PRO 920

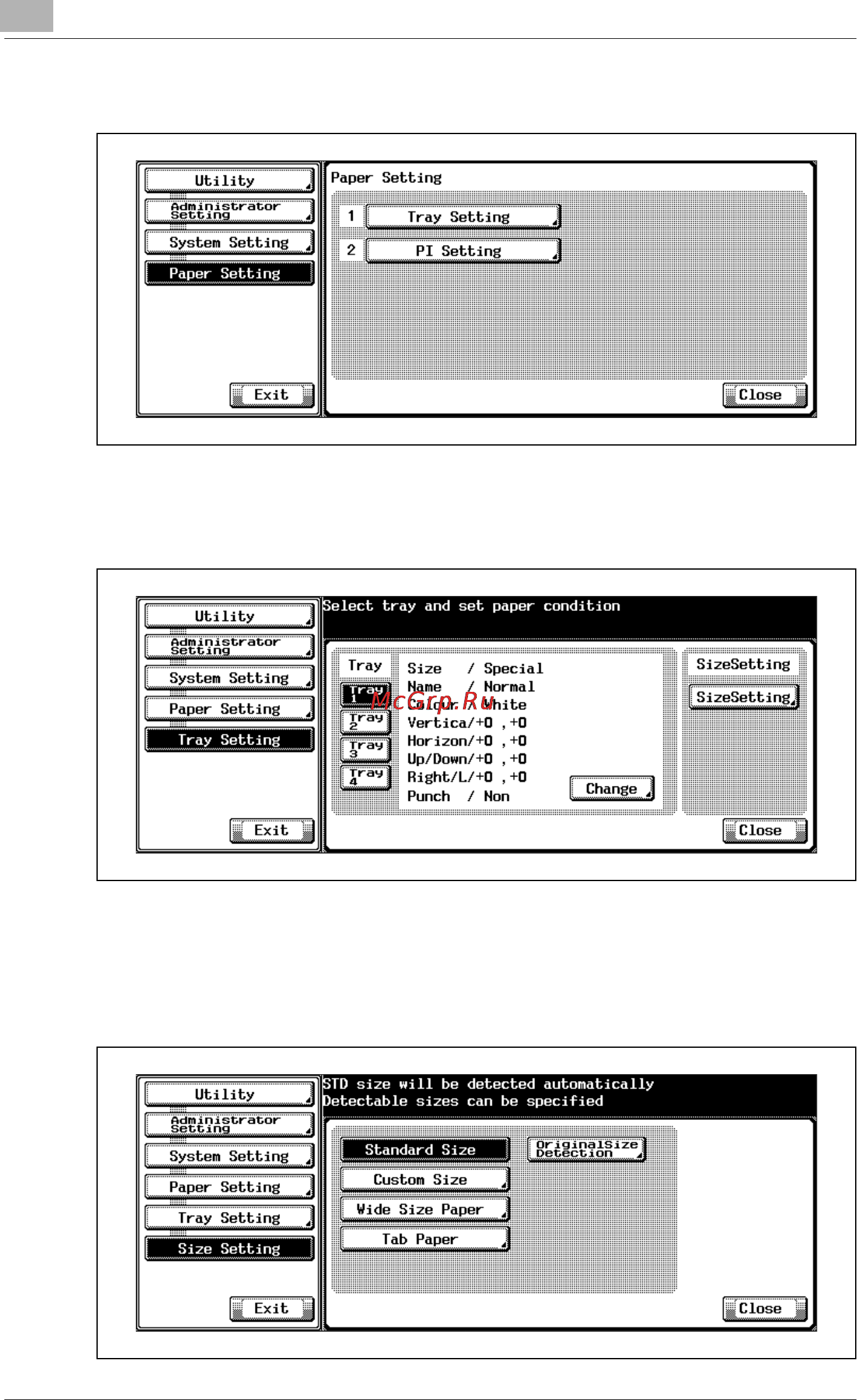

6 Touch [1 Tray Setting].

The tray setting screen will be displayed.

7 Touch a desired tray key to highlight it.

8 Touch [Size Setting] to change a tray setting.

The Size Setting Screen will be displayed.

9 Touch the desired key to specify the detectable size.
