Preparation for Use
2
bizhub PRO 920 2-5

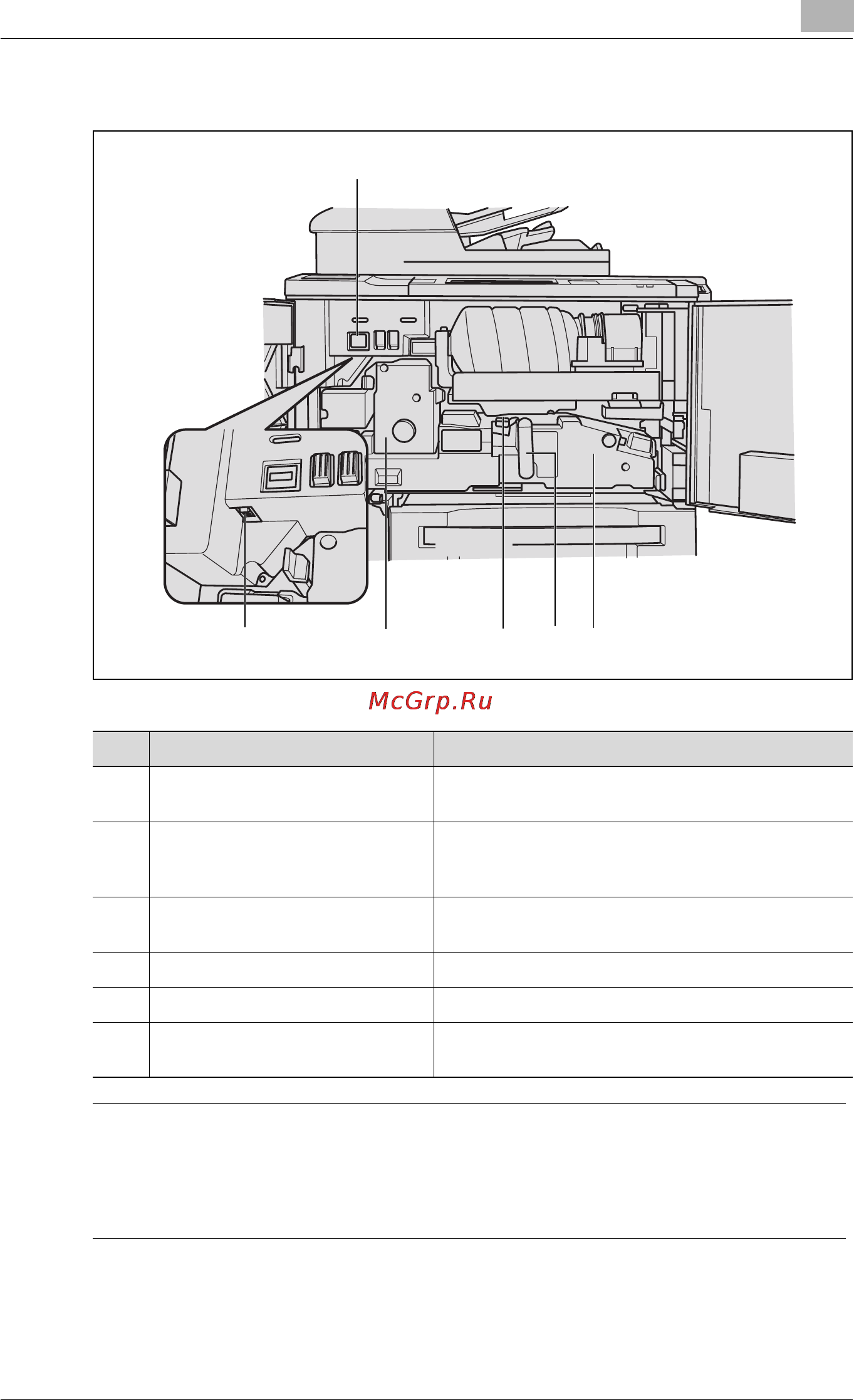

Internal Machine Items
7 CAUTION
The internal fixing unit is very hot.
% To avoid getting burned, DO NOT TOUCH.
1
2
3
4
5
6
No. Item Description
1 Total counter Indicates the total number of copies and prints
made.
2 Conveyance fixing unit Passes the paper through the drum unit, fuses the
toner onto the copy paper, and is to be withdrawn
for removal of mishandled paper.
3 Conveyance fixing unit lever Can be opened rightward to withdraw the convey-
ance fixing unit for removal of mishandled paper.
4 Drum unit Forms the copy image.
5 Fixing unit Fuses the toner onto the copy paper.
6 Main power switch Used only by service representative turns machine
power on/off when pressed.
