Konica Minolta bizhub PRO 920 [489/980] Density setting 2 user density setting

Utility <User Setting>

bizhub PRO 920 17-39

3 Density Setting>2 User Density Setting

The copy density level is divided into 16 levels between Darker and Normal,

and between Normal and Lighter, respectively. Select and preset two levels

from the 32 levels. The preset density level setting can be recalled from

Special Image on the Copy Screen.

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

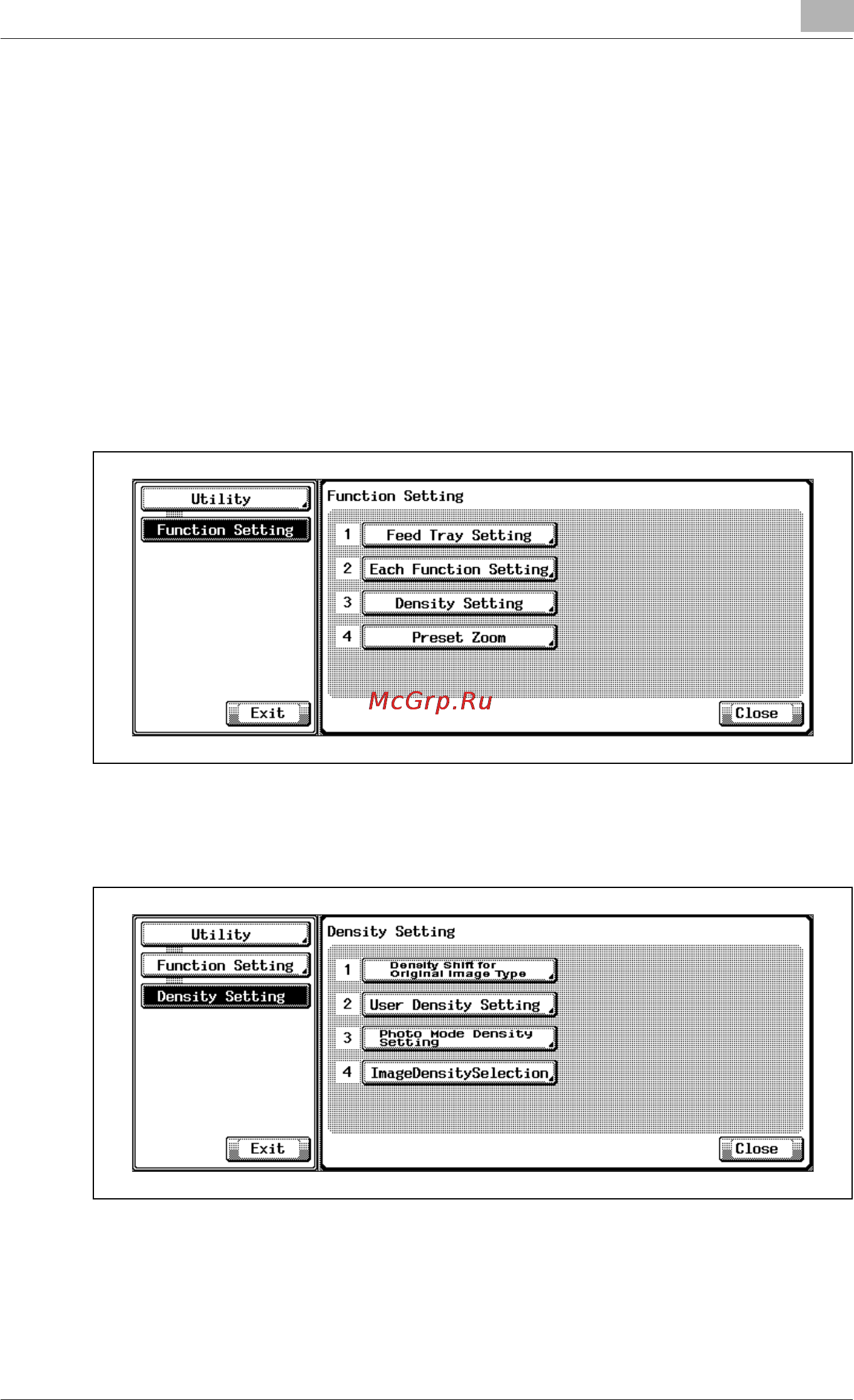

The Function Setting Screen will be displayed.

3 Touch [3 Density Setting].

The Density Setting Screen will be displayed.

4 Touch [2 User Density Setting].

The User Density Setting Screen Menu will be displayed.
