Konica Minolta bizhub PRO 920 [125/980] If no response screen is displayed

Troubleshooting

bizhub PRO 920 5-13

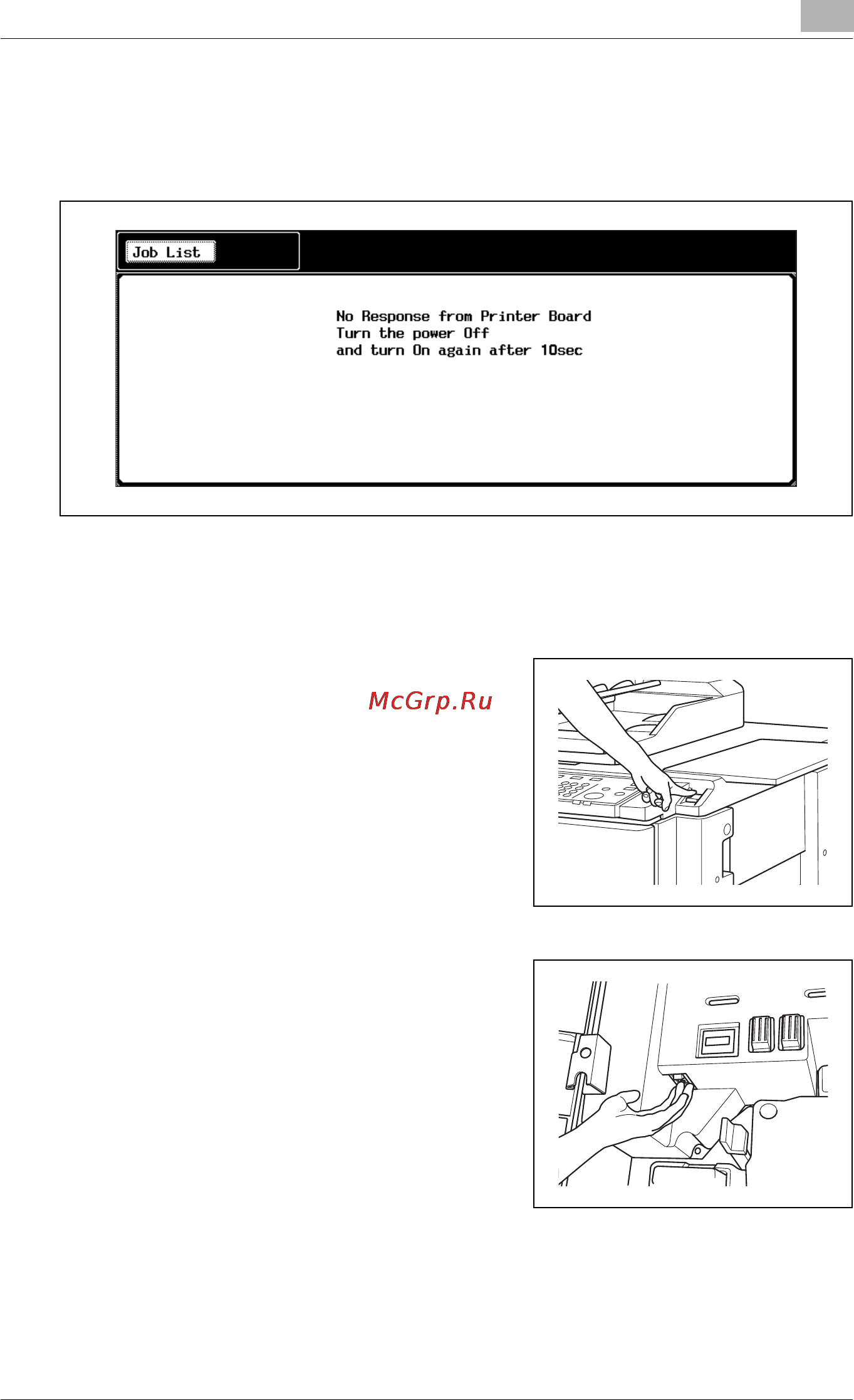

5.6 If No Response Screen Is Displayed

When any trouble occurs on the printer board, "No Response from Printer

Board" message will be displayed on the touch panel.

Follow the procedure below to turn the machine power off then on.

To turn off/on the power

1 Turn OFF the sub power switch.

2 Turn OFF the main power switch.

3 Wait about 10 seconds or longer.

4 Turn ON the main power switch and sub power switch.
