Preparation for Use

2-18 bizhub PRO 920

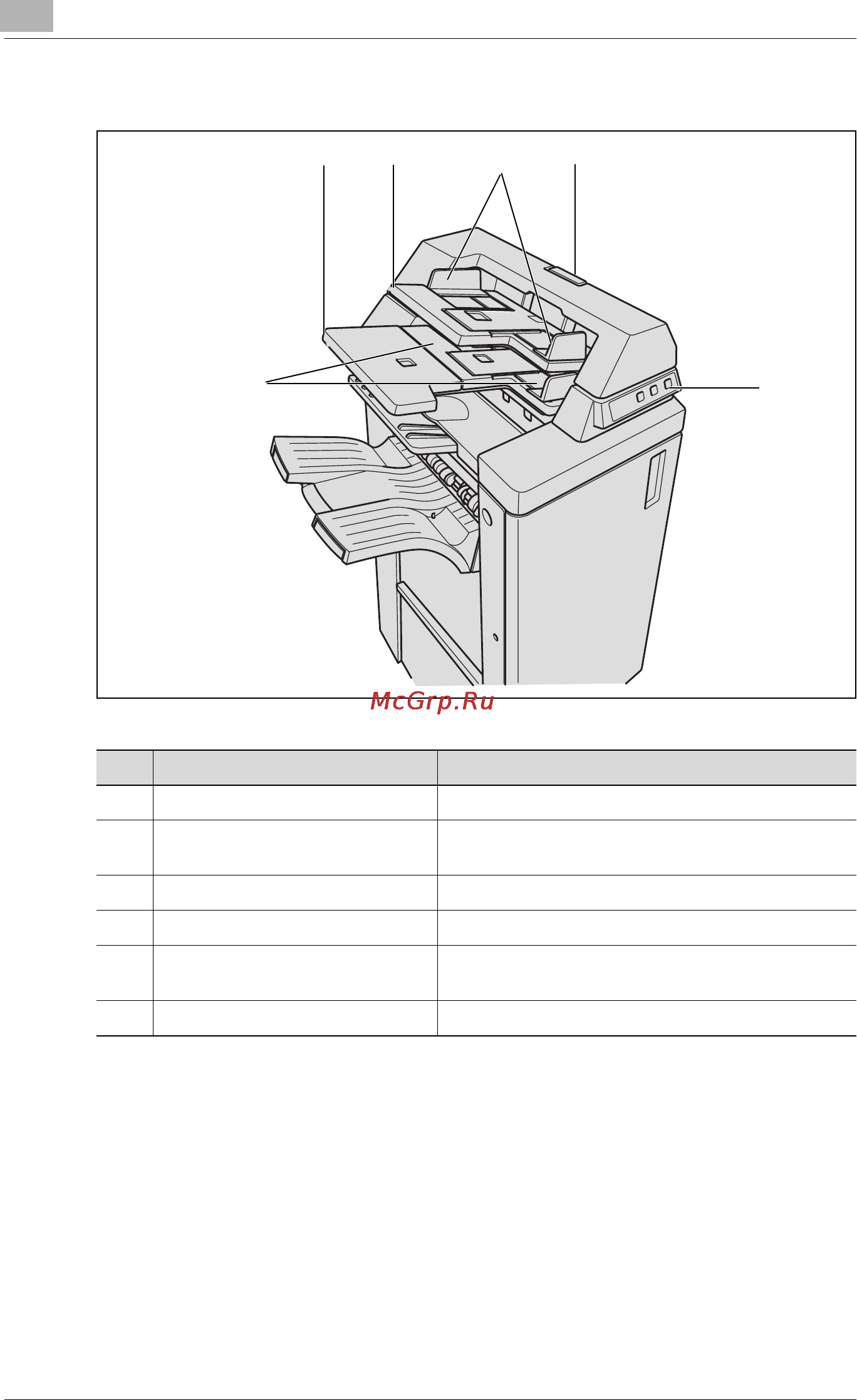

Post Inserter PI-501

No. Name Description

1 Manual finishing operation panel Operates when using finisher manually.

2 Upper unit release lever Opens upward to slide the upper unit leftward when

removing mishandled paper.

3 Upper tray paper guides Hold cover sheets to fix the position.

4 Cover sheet feeder (upper) Holds cover sheets.

5 Cover sheet feeder (lower) Holds cover sheets to be used for manual opera-

tion.

6 Lower tray paper guides Hold cover sheets to fix the position.
