Konica Minolta bizhub PRO 920 [497/980] Tandem setting 1 tandem sub machine one time data read

Utility <User Setting>

bizhub PRO 920 17-47

5 Tandem Setting>1 Tandem Sub Machine One Time Data Read

Set the sub machine to receive all the data transmitted from the master

machine before starting to print.

Detail

By default, the Tandem Setting key is not displayed. Contact your service

representative.

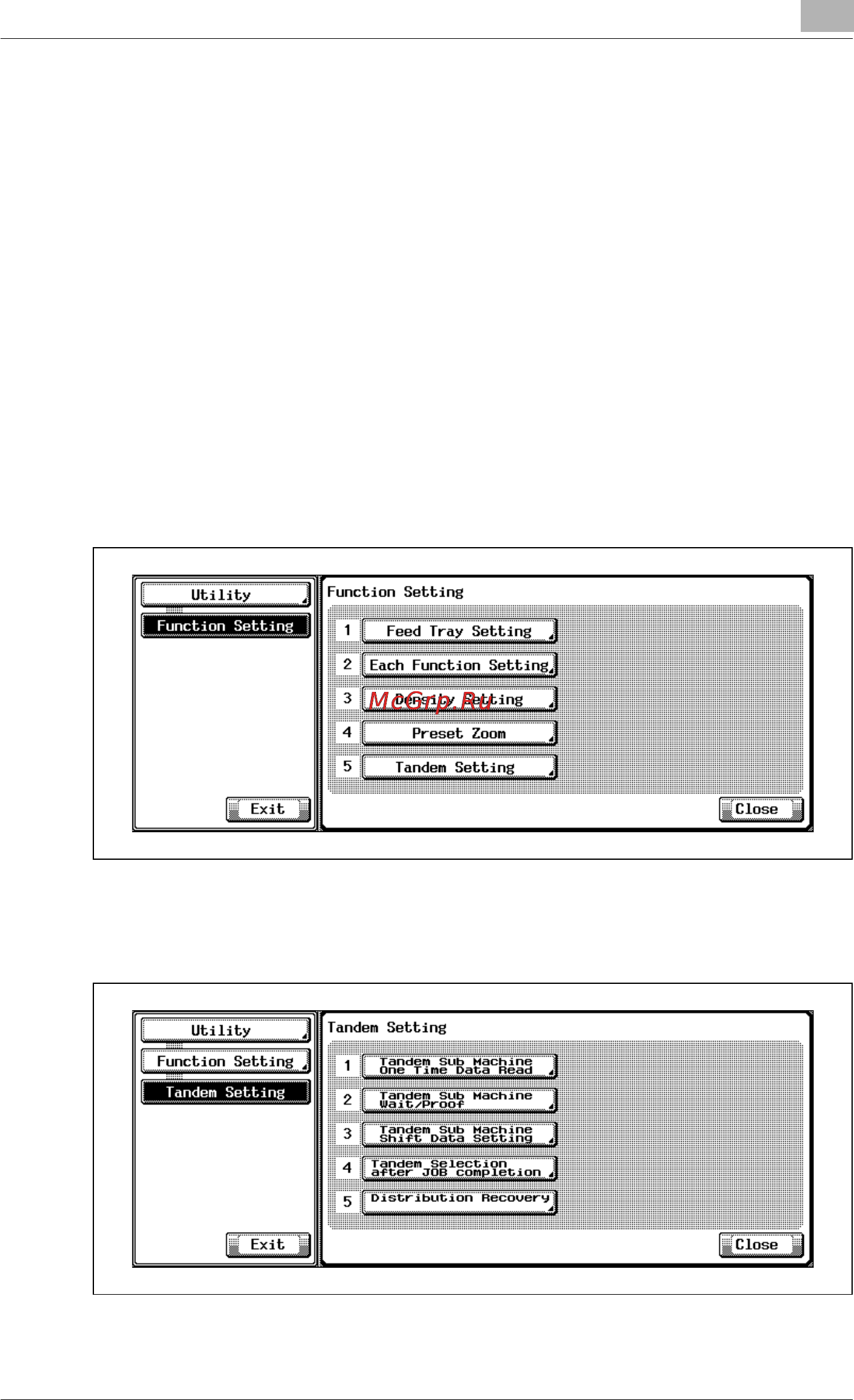

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [2 Function Setting].

The Function Setting Screen will be displayed.

3 Touch [5 Tandem Setting].

The Tandem Setting Screen will be displayed.

4 Touch [1 Tandem Sub Machine One Time Data Read].

The Tandem Sub Machine One Time Data Read Screen will be

displayed.
