Utility <User Setting>

17-48 bizhub PRO 920

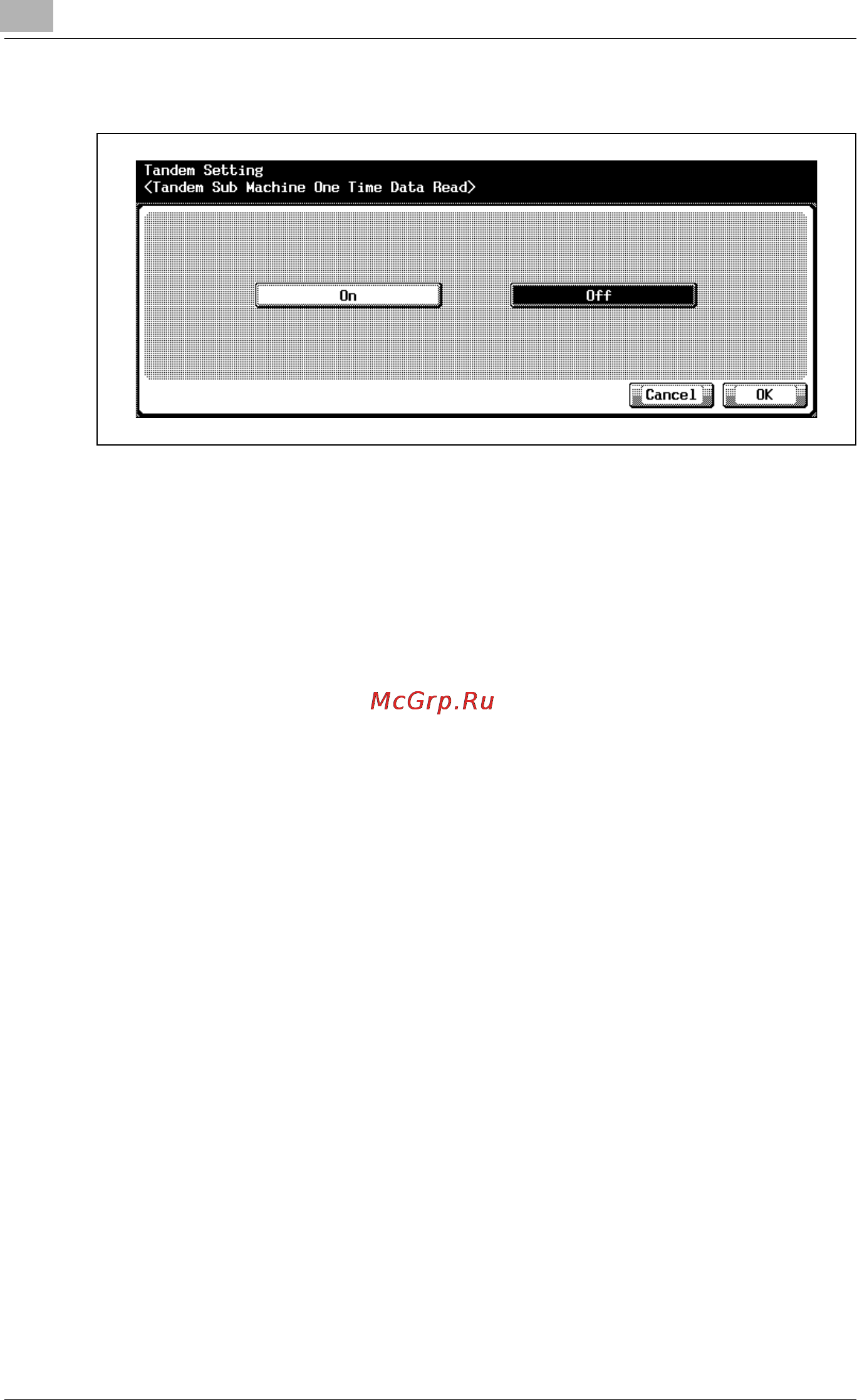

5 Touch [On] or [Off] to highlight it.

– With [On] selected, the master machine immediately starts printing

with scanning on the run, while the sub machine waits for all the

data to be transmitted then starts printing.

– With [Off] selected, printing job starts on both master and sub

machines while the master machine continues scanning the

originals.

6 Touch [OK] to complete the setting and return to the Tandem Setting

Screen.

7 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
