Konica Minolta bizhub PRO 920 [629/980] 4 network setting

Utility <Administrator Setting>

bizhub PRO 920 18-105

18.6 4 Network Setting

1 Machine NIC Setting

Control the NIC settings such as the IP address and line speed of the

machine.

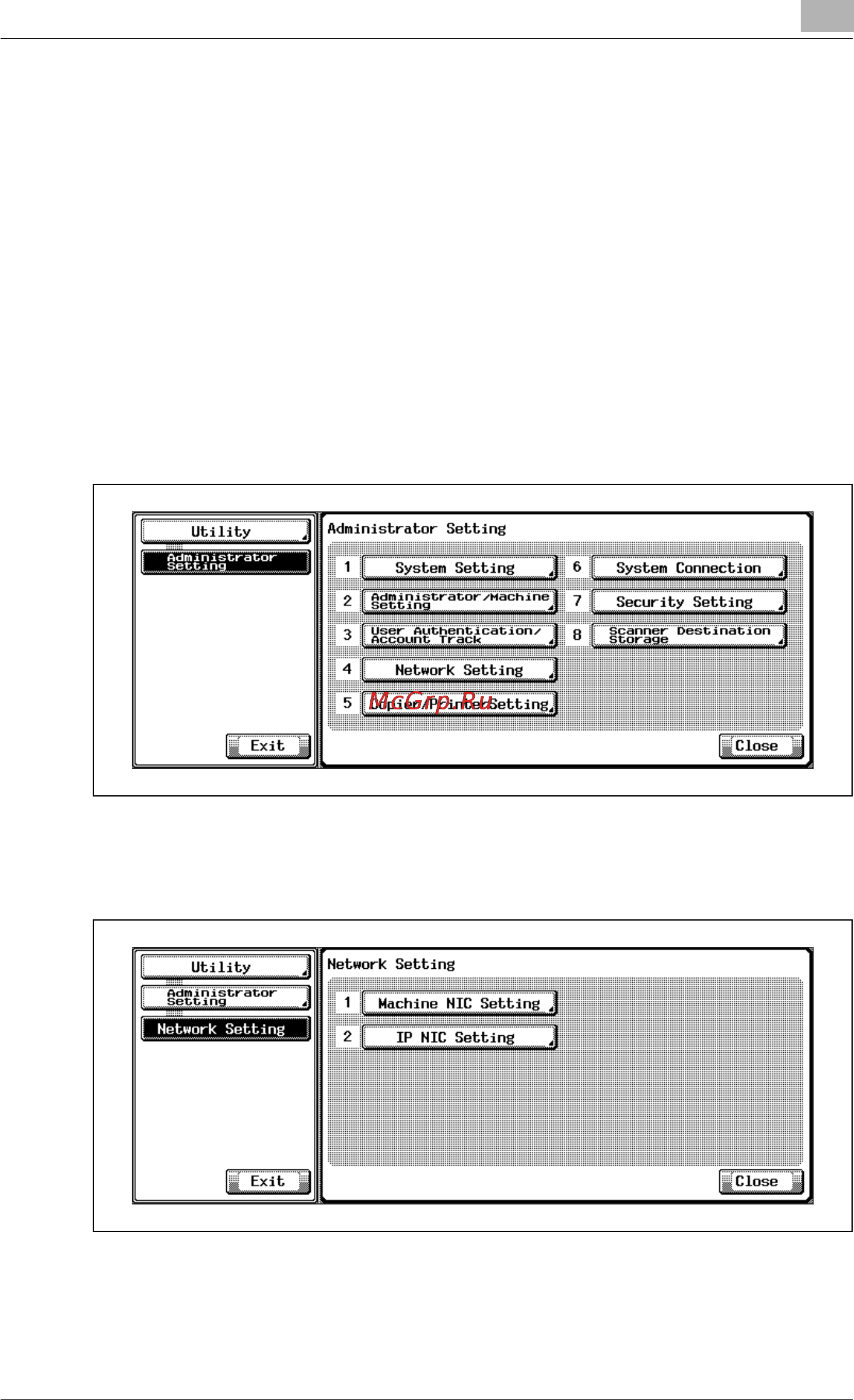

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [4 Network Setting].

The Network Setting Screen will be displayed.

4 Touch [1 Machine NIC Setting].

The Machine NIC Setting Screen will be displayed.
