Konica Minolta bizhub PRO 920 [268/980] 32 bizhub pro 920

Applications

11-32 bizhub PRO 920

Detail

Use original glass for scanning original cover.

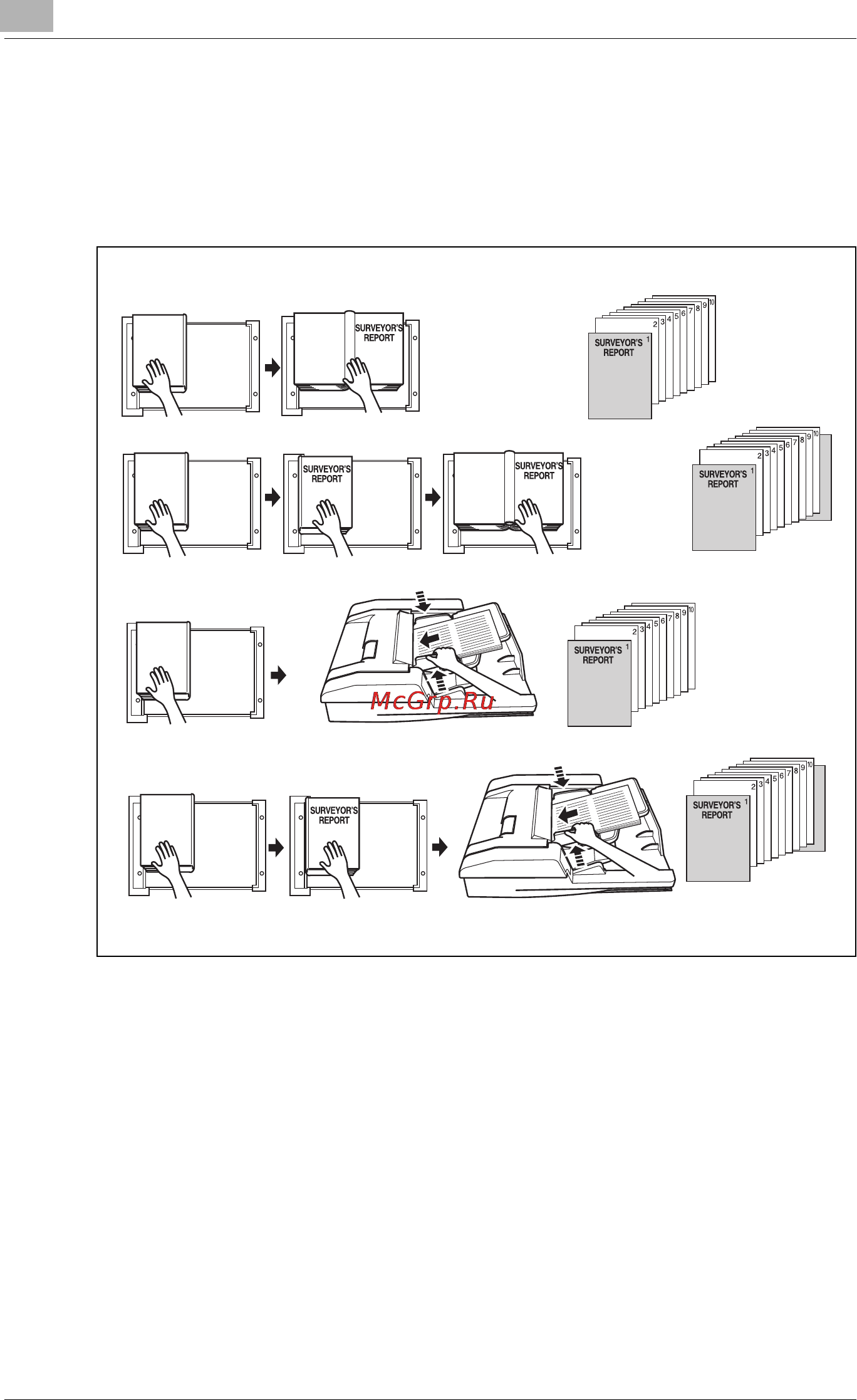

See the illustrations below for details.

Front Cover + Spread

Front/Back Cover + Spread

Scan from

first page

Scan from

first page

Front Cover + Spread

Scan body text

Front/Back Cover + Spread
