Utility <Administrator Setting>

18-136 bizhub PRO 920

2 IP NIC Setting>5 SNMP

Specify the SNMP settings.

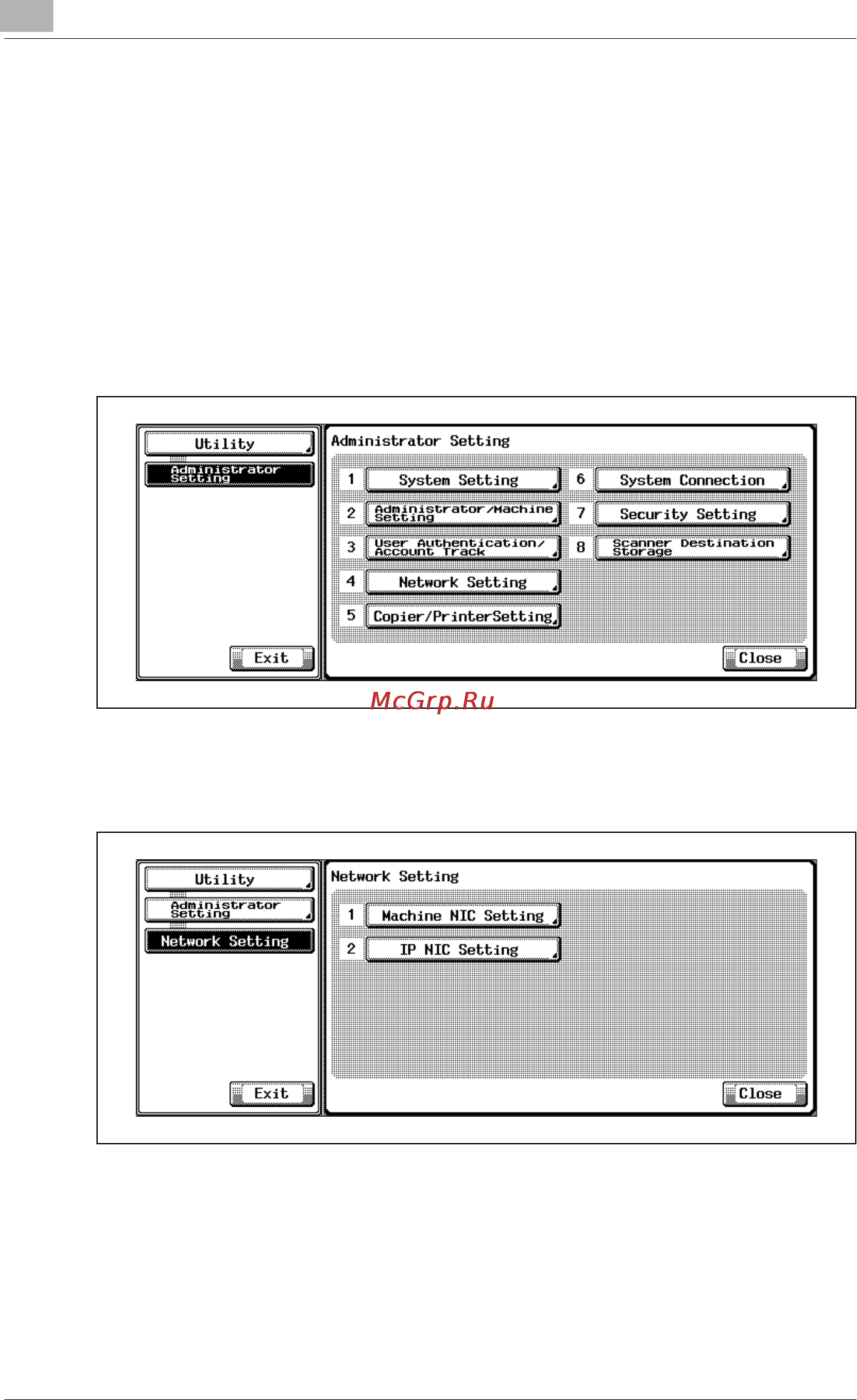

1 Press the [Utility/Counter] to display the Utility Screen.

2 Touch [6 Administrator Setting], enter the administrator password, and

then touch [OK].

The Administrator Setting Screen will be displayed.

3 Touch [4 Network Setting].

The Network Setting Screen will be displayed.

4 Touch [2 IP NIC Setting].

The IP NIC Setting Screen will be displayed.
