Konica Minolta bizhub PRO 920 [236/980] To specify original type

Original Setting

10-24 bizhub PRO 920

To specify Original Type

1 Touch [Orig. Image Type] on the Basic Screen.

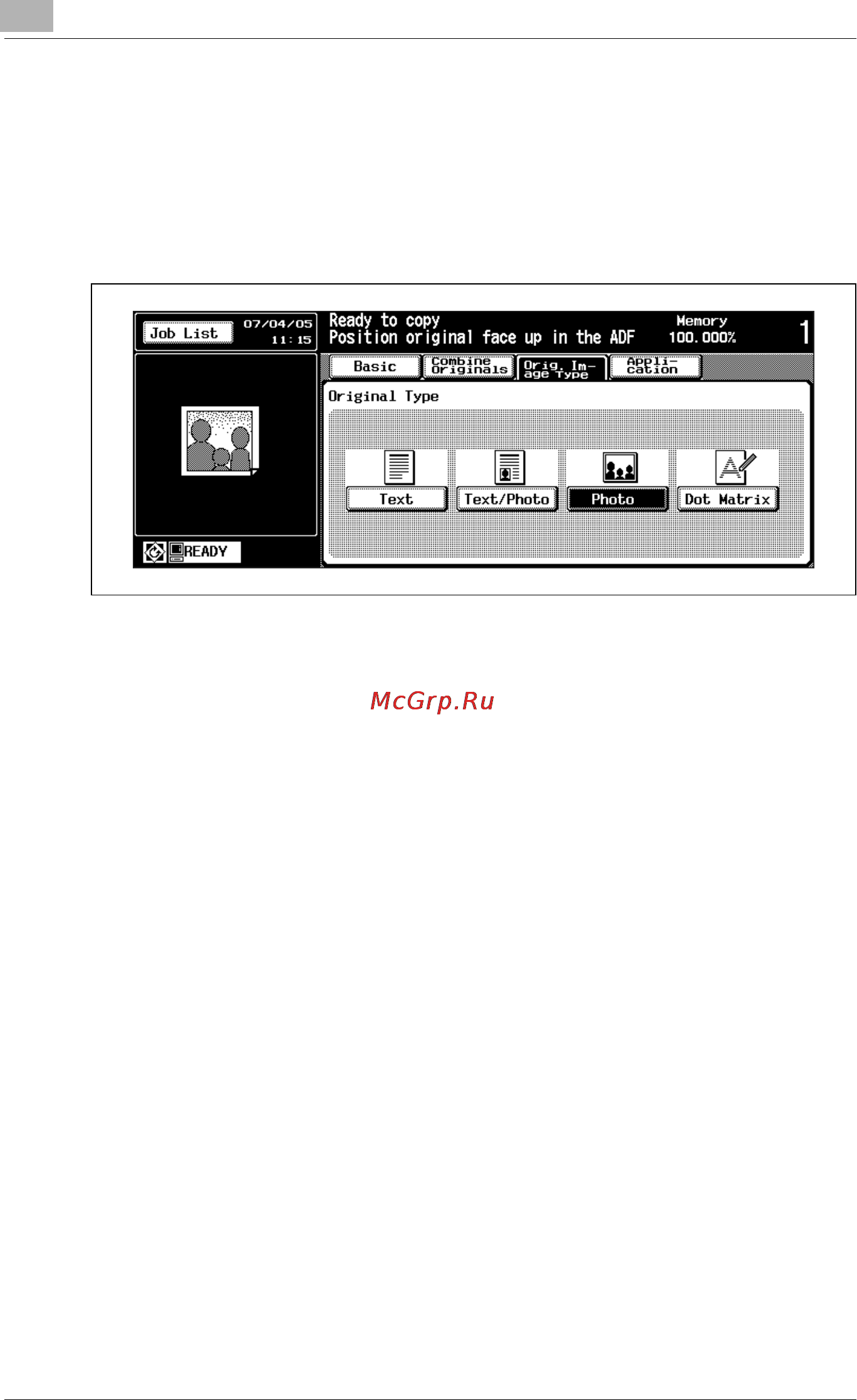

The Special Image popup menu will be displayed.

2 Touch the desired mode key to highlight it.

3 Enter the desired print quantity, position original(s), then press [Start].

Do you want to select additional copy conditions?

% Touch [Basic] or any other tab key to continue job settings.
