Konica Minolta bizhub PRO 920 [34/980] Installation space

Precautions for Installation and Use

1-14 bizhub PRO 920

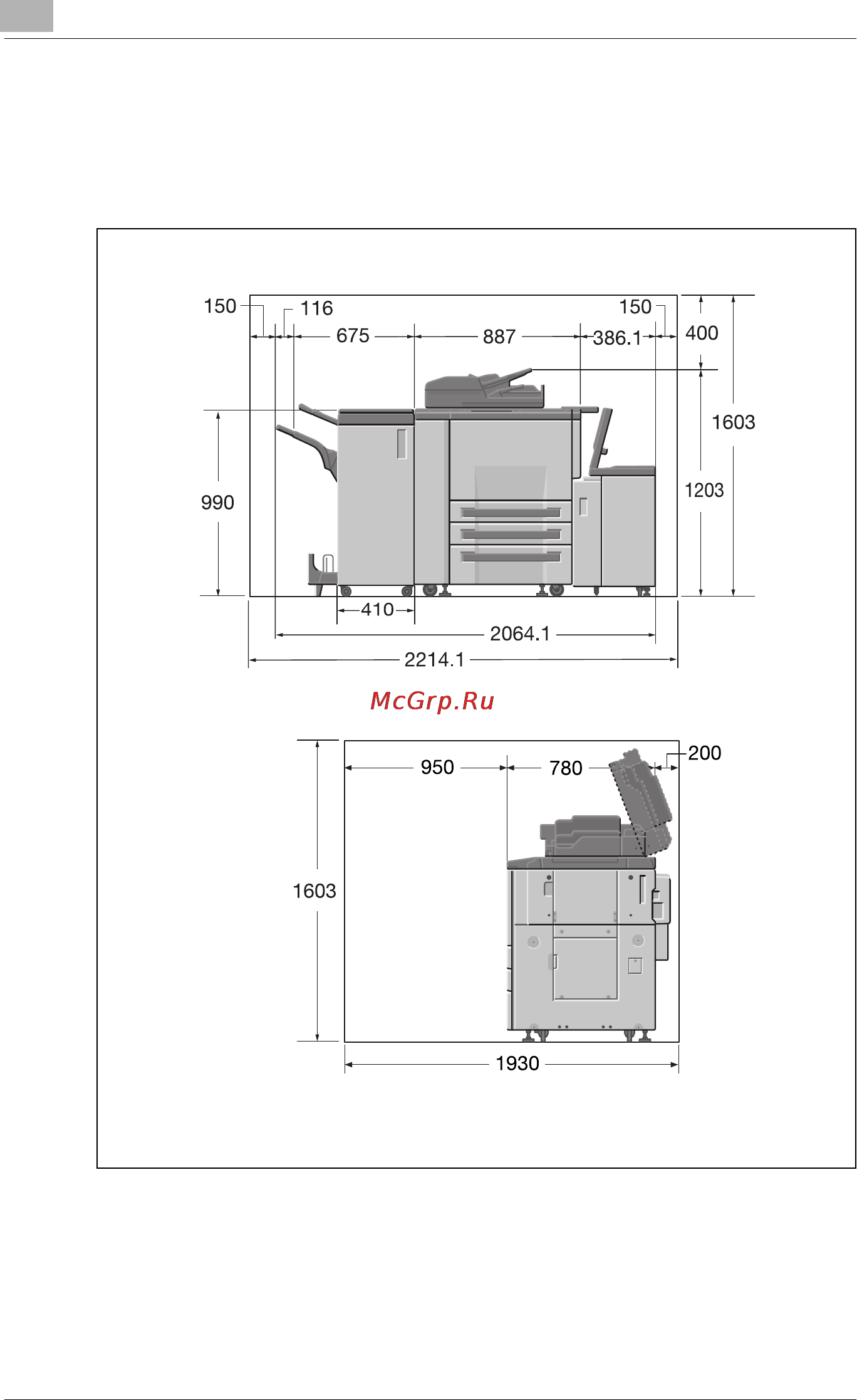

1.4 Installation Space

Allow sufficient space for facilitating copy operation, changing parts, and

periodic inspection. Leave an adequate space behind the machine to let hot

air out from the rear fan.

Main body (Right side)

Main body + DF-606 + FS-604 + LU-403 (Front)

Unit: mm
