Applications
11
bizhub PRO 920 11-41
11.11 Making Multiple Page Signature Booklet (Booklet
Pagination)
Use the Booklet Pagination function to make a multiple page signature
booklet on both sides of paper. Original images are scanned into memory
and automatically arranged in booklet format in correct order.
In the machine equipped with FS-604 option, Magazine binding in Half Fold
or Fold&Staple is available, while Adhesive binding can be selected with Half
Fold mode.
Trimming mode is also available in combination with Half Fold or
Fold&Staple mode, if Trimmer unit TU-501 is installed.
!
Detail
The Utility Screen provides the setting to position the page numbers
automatically on the outside edges of the copy when using Booklet
Pagination with Page Numbering in Stamp.

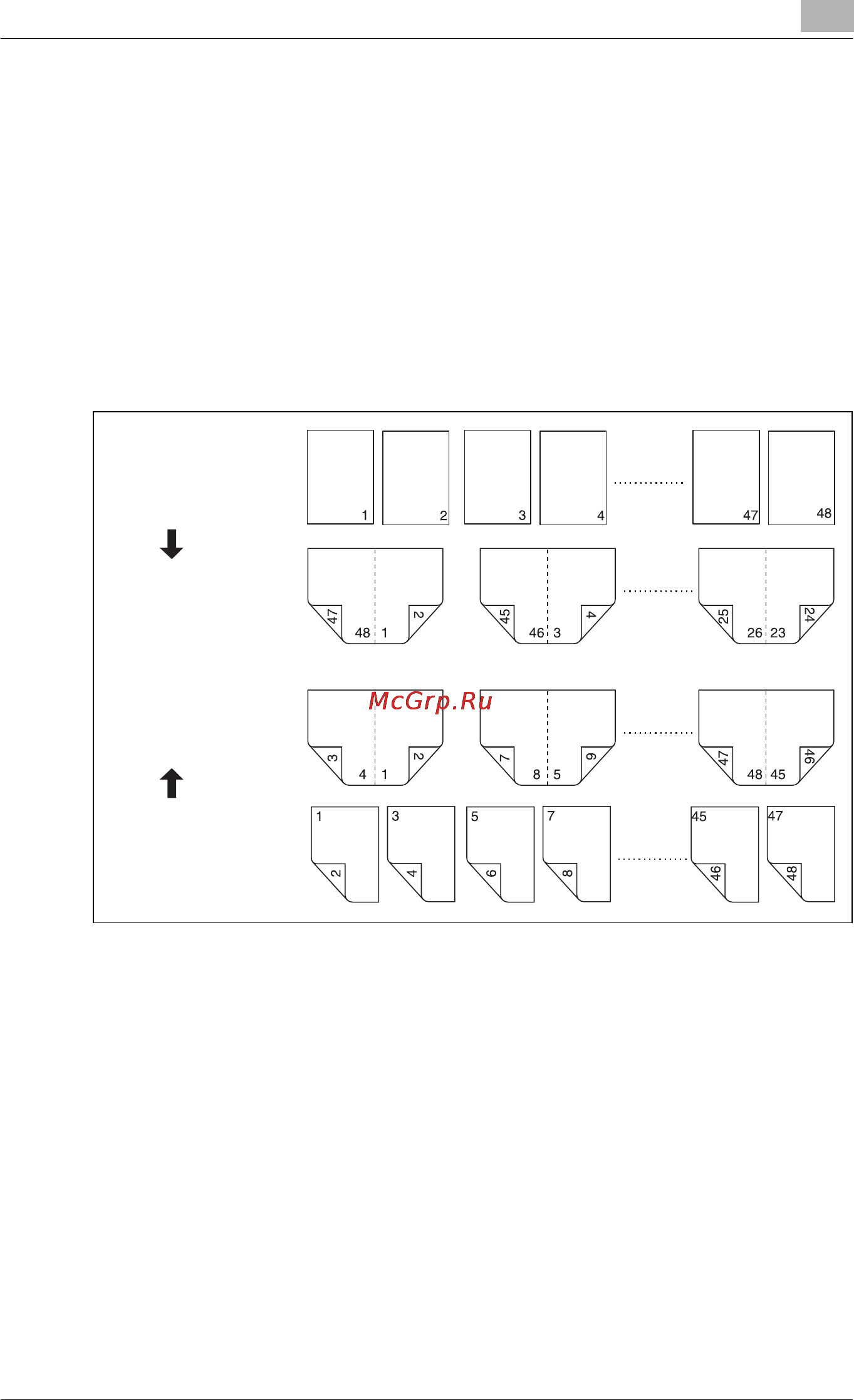

Double-sided
docoment
Adhesive binding
Magazine binding
Single-sided
originals
