Basic Job Settings
9
bizhub PRO 920 9-25
Changing Magnification Ratio
The following six modes are provided:
- Enlarge/Reduce: Select from the eight ratios (0.500, 0.707, 0.816, 0.866,
1.154, 1.224, 1.414, 2.000) provided on the screen.
- XY Zoom (proportional): Specify 0.250 to 4.000 in 0.001 (0.1%)
increments
- XY Zoom (Individual): Vertical and horizontal dimensions can be specified
individually from 0.250 to 4.000 in 0.001 (0.1%) increments.
- Preset Zoom: Select from the three ratios previously programmed.
- Minimal: Set reduction ratio slightly smaller than full size (0.930) in order
to prevent image loss when copying original image that reaches the page
margin.
- Auto Zoom: Automatically set appropriate magnification ratio according
to the original size and selected paper size.
!
Detail
For details on the preset zoom ratio setting, refer to "4 Preset Zoom" on
page 17-46.
To set zoom mode

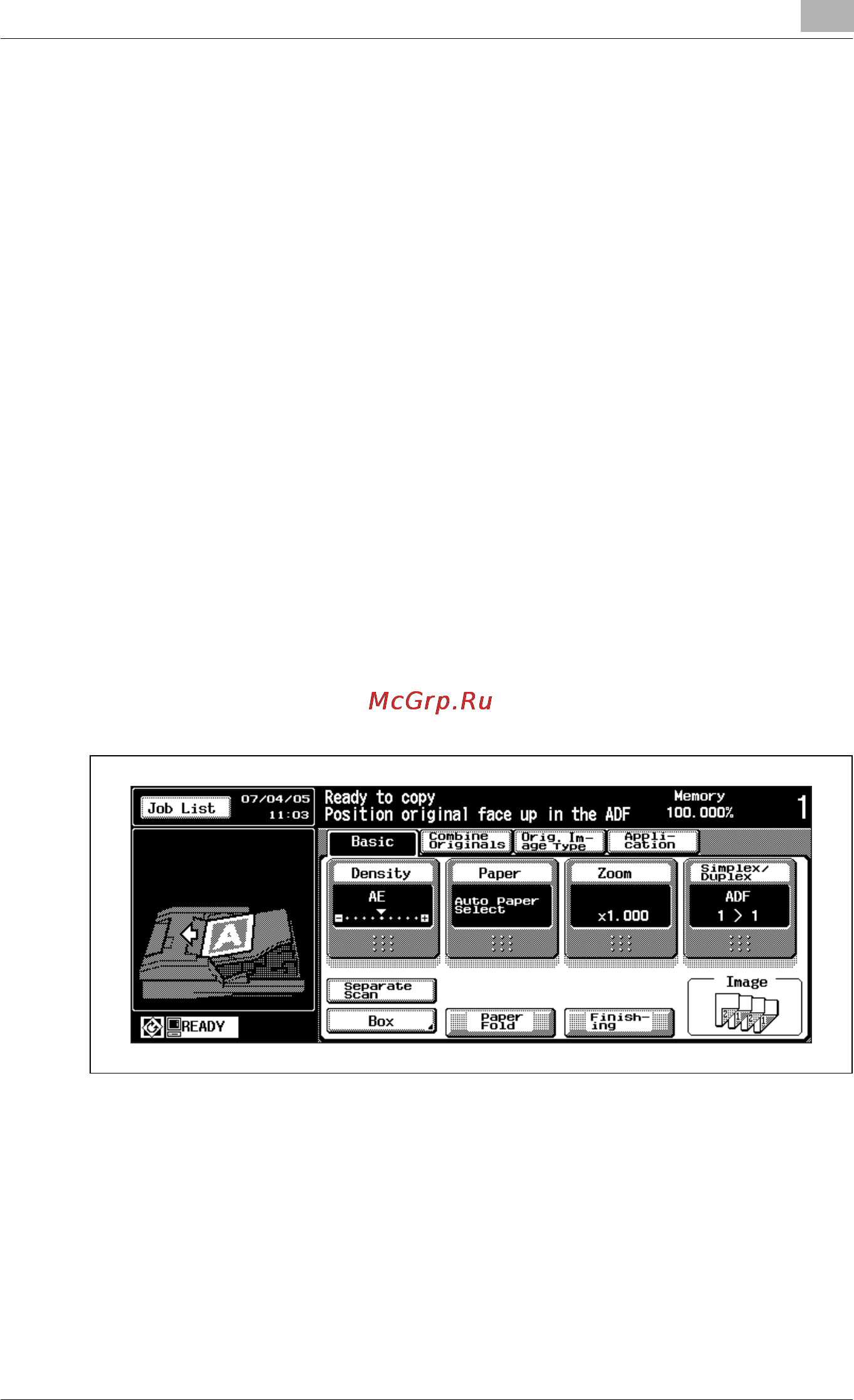

1 Touch [Zoom] on the Basic Screen.
The Zoom setting menu will be displayed.
