bizhub PRO 920 6-7

6.3 Preventive Maintenance

After a set number of copies (500,000 copies) have been made on your

machine, Preventive Maintenance (PM) will be required for maintaining

optimal performance.

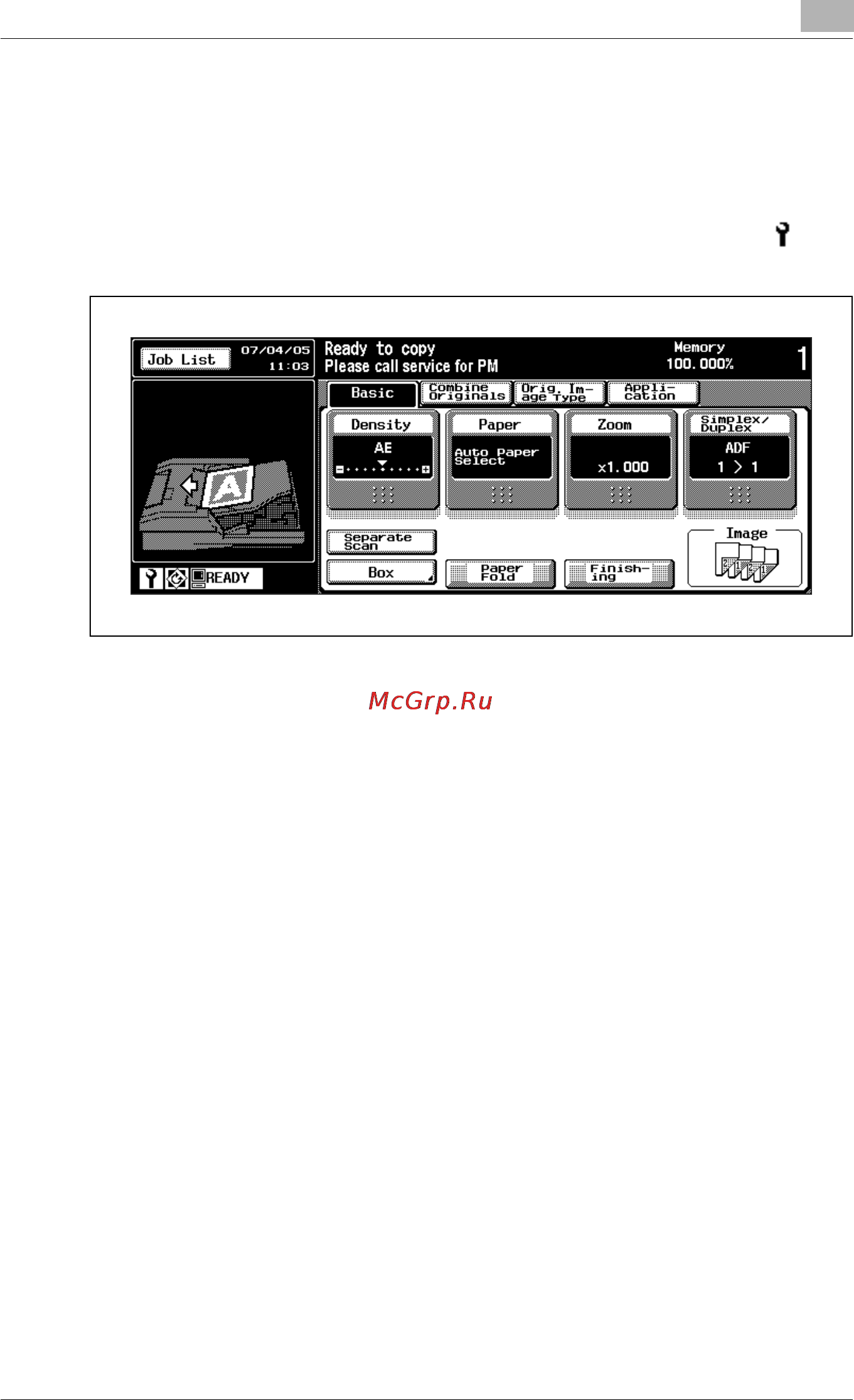

When preventive maintenance is due, a message and the PM icon ( ) will

prompt you to contact your service representative for maintenance.

Detail

The administrator can call for service using the Utility setting (6

administrator Setting>6 System Connection>1 Call Service Centre).

Refer to "7 Security Setting" on page 18-200.

In this case, you don’t have to make a call for preventive maintenance,

because your machine has been monitored automatically by your service

representative.
