Original Setting

bizhub PRO 920 10-9

10.3 Original

Specifying Original Direction (Original Direction)

Specify the direction of the originals placed on ADF or original glass.

This setting is required to obtain copy results as expected when making

double-sided copies with binding position specified or when staple position

is specified.

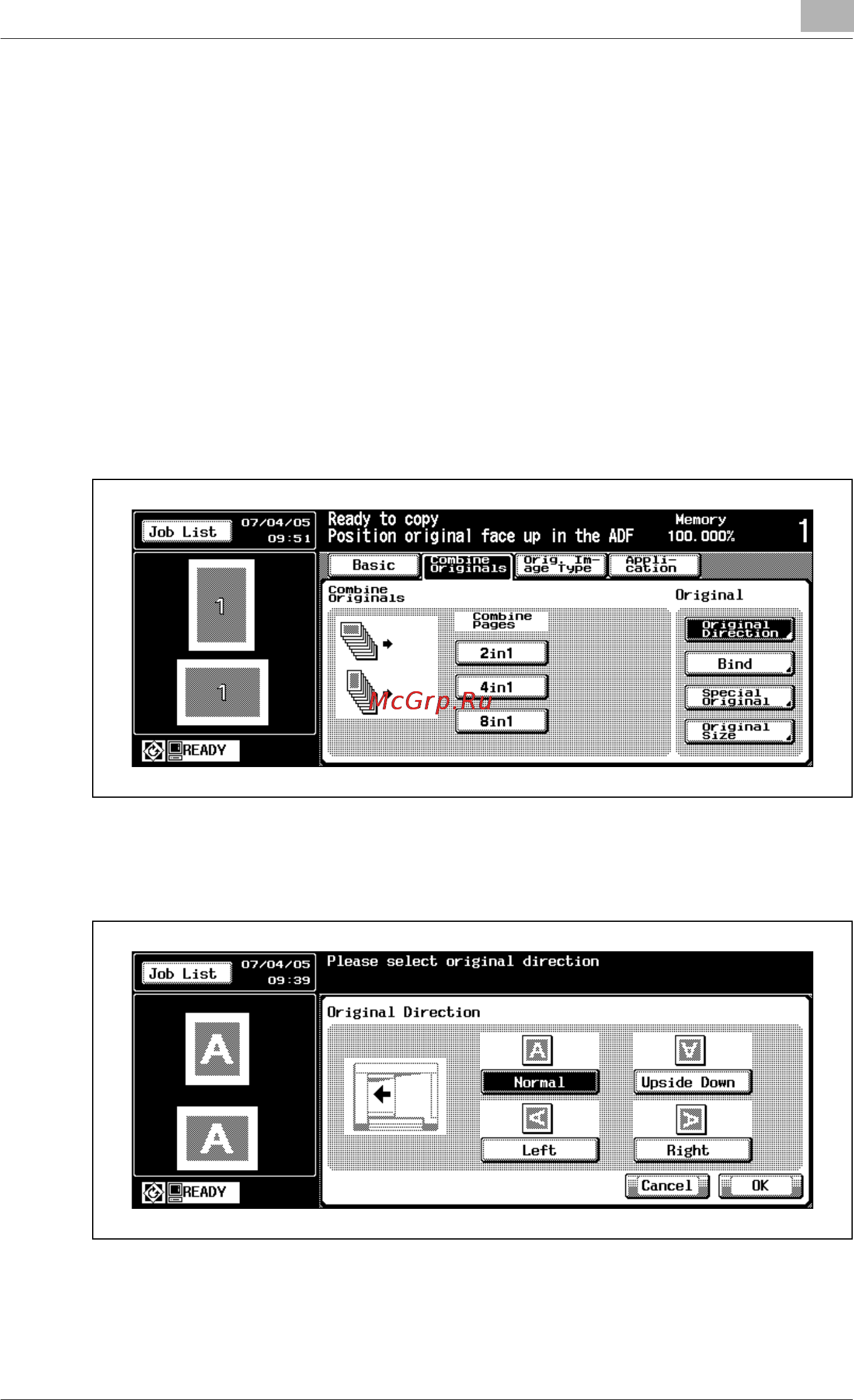

1 Touch [Combine Originals] on the Basic Screen.

The Combine Originals setting menu will be displayed.

2 Touch [Original Direction].

The Original Direction Screen will be displayed.

3 Touch the desired original direction key to highlight it.
