Konica Minolta bizhub PRO 920 [43/980] Control panel layout

Preparation for Use

bizhub PRO 920 2-7

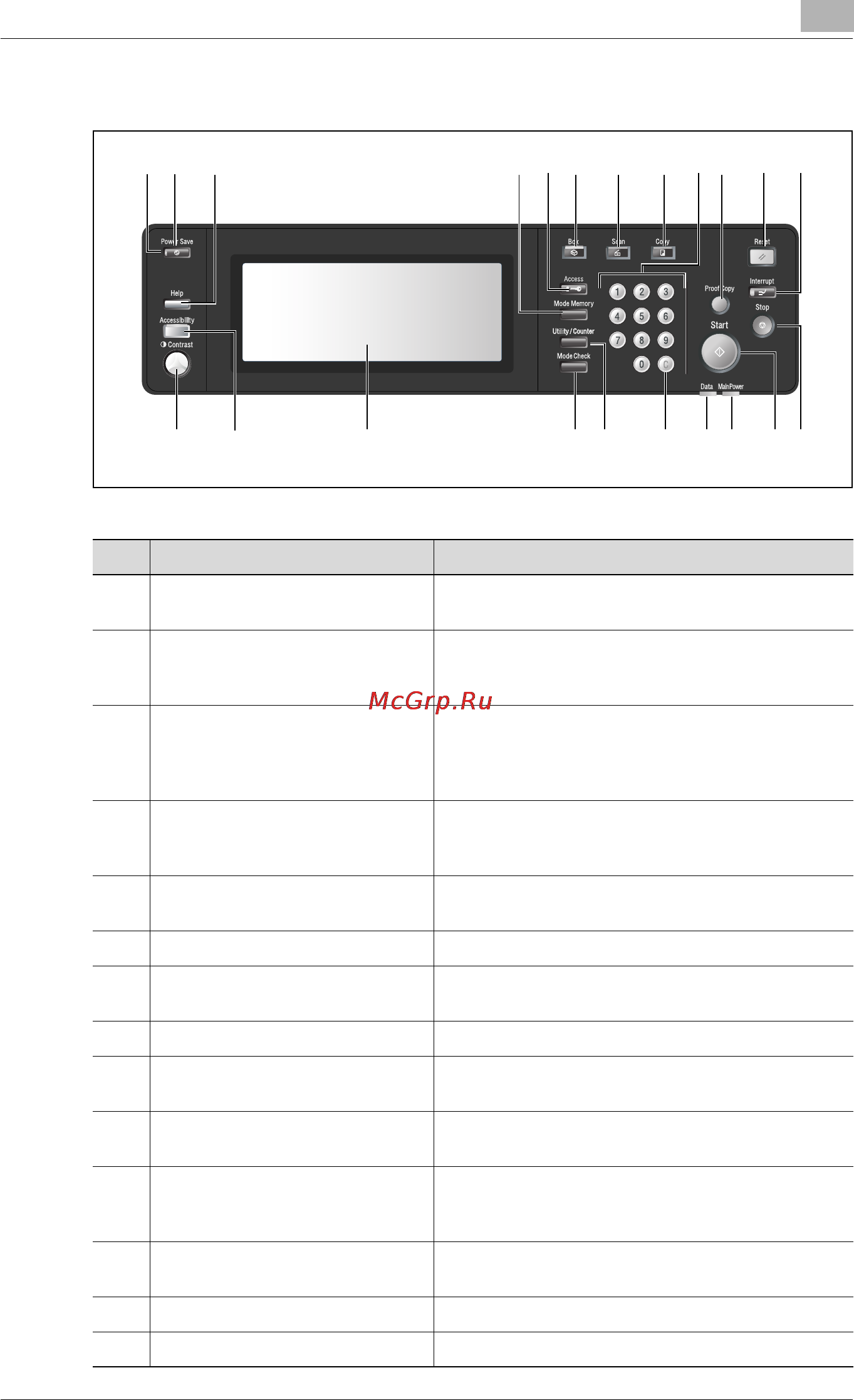

Control Panel Layout

20 21 22

18 17 16 15 14 13 12 1110

987

4321

No. Name Description

1 [Mode Memory] key Displays screens for selecting job store/job recall

functions.

2 [Access] key Sets the machine to allow copying/scanning/print-

ing only when the User Authentication/Account

Track password is entered.

3 [Box] key Press to store the image data in HDD of the main

body or on a PC over a network, or to recall the

stored data. The indicator of the key will light when

pressed.

4 [Scan] key Press to scan the original images, or to specify the

address for data transmission. The indicator of the

key will light when pressed.

5 [Copy] key Press to operate copying functions. The indicator of

the key will light when pressed.

6 Keypad Enters numeric value such as print quantity.

7 [Proof Copy] key Outputs a single set of copies to confirm whether

the current settings are selected properly.

8 [Reset] key Restores copier to the initial settings.

9 [Interrupt] key Stops copying/scanning/printing in progress to al-

low a simple copying job.

10 [Stop] key Ceases the copying sequence; deletes the stored

memory.

11 [Start] key Activates each function. The Start LED lights in

green when machine operation is available, and

turns orange if any operation cannot be started.

12 Main Power indicator Lights in green when the main power switch is

turned on.

13 Data indicator Flashes while receiving print data.

14 [C] (clear) key Allows resetting of print quantity.
