12
Finishing / Paper Fold
12-30 bizhub PRO 920
12.10 Using Finisher Manually
The Finisher FS-509/FS-604 with Post inserter PI-501 installed can be
operated manually, using the operation panel provided on the post inserter.
Place a set of paper into the lower tray. Upper tray cannot be used.
Available finishing modes according to the optional configuration are
described below.
- Finisher FS-509 + Post inserter PI-501
– Staple (1 staple / 2 staples)
- Finisher FS-604 + Post inserter PI-501
– Staple (1 staple / 2 staples)
– Fold&Staple
– Letter Fold
- Finisher FS-509 + Post inserter PI-501 + Punch kit PK-504/505
– Staple (1 staple / 2 staples)
–Punch
- Finisher FS-604 + Post inserter PI-501 + Punch kit PK-504/505
– Staple (1 staple / 2 staples)
– Fold&Staple
– Letter Fold
–Punch
2
Reminder
The Z folding unit ZU-601/602 cannot be used for manual punch. To use
Punch mode manually, Punch kit PK-504/505 is necessary.

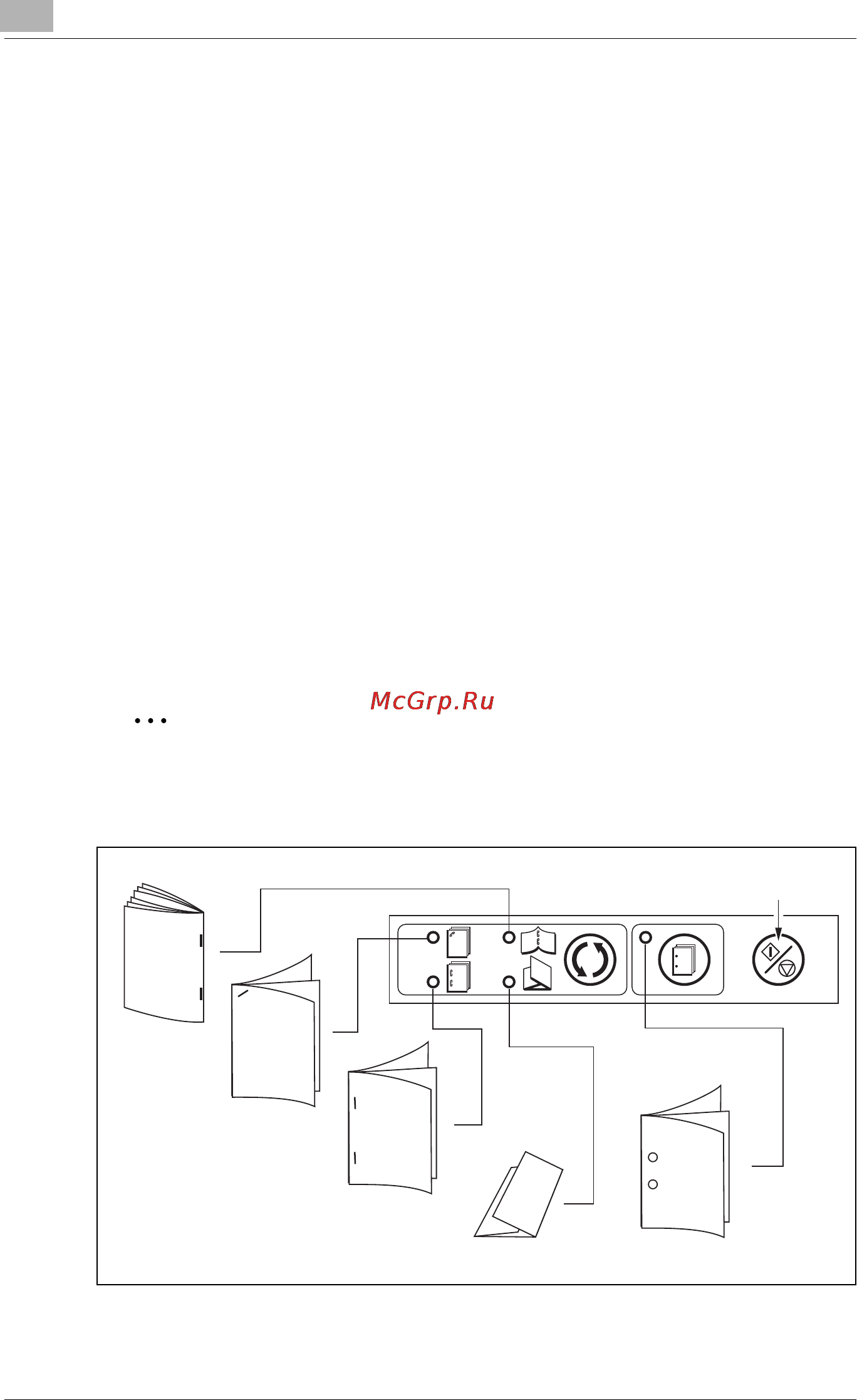

Start/Stop button
Fold&Staple
1 oblique staple
2 parallel staples
Letter Fold Punch
