Preparation for Use

bizhub PRO 920 2-11

Large Capacity Unit LU-403/LU-404

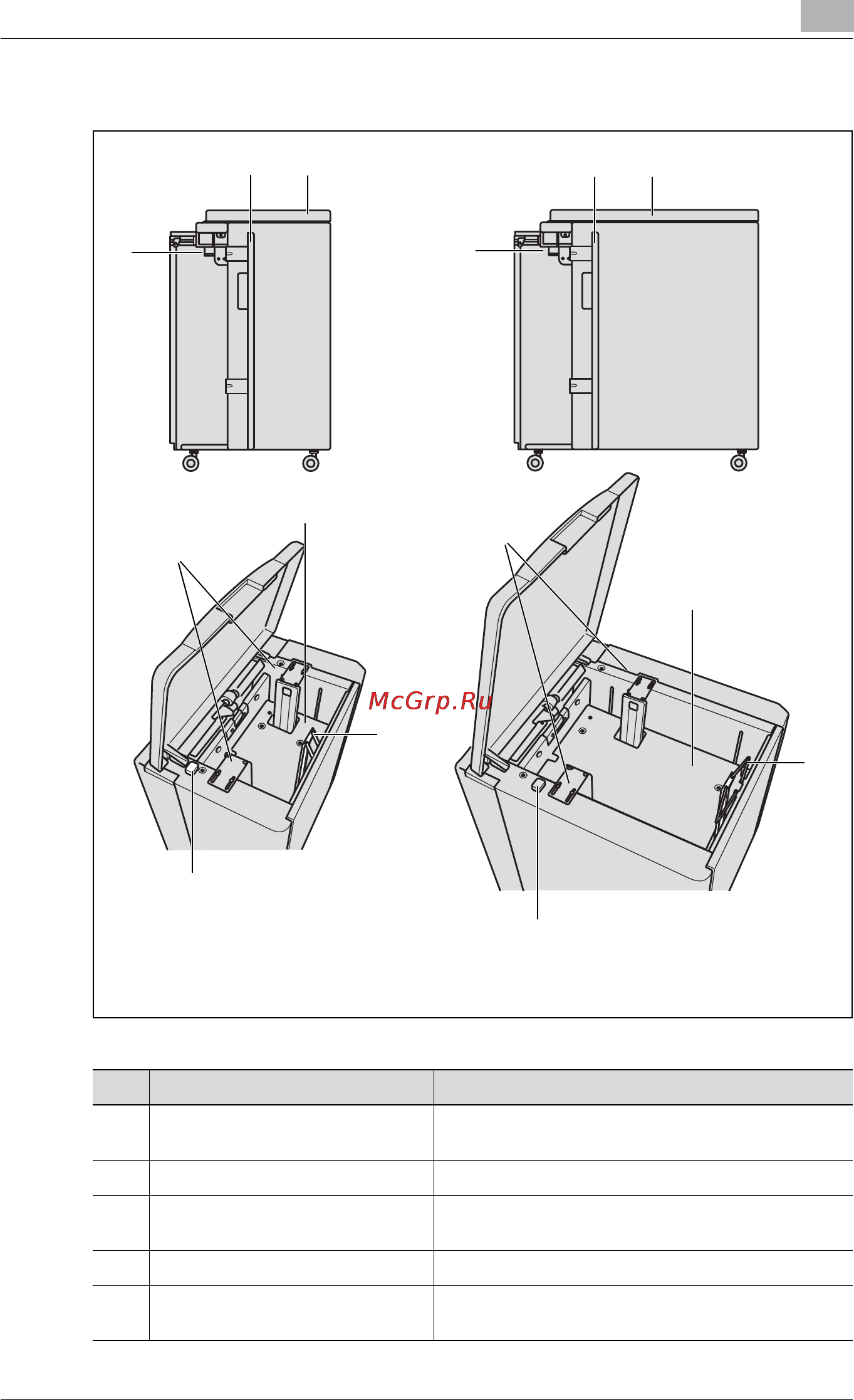

Large Capacity Unit LU-403 Large Capacity Unit LU-404

No. Name Description

1 Top door Opens to allow paper loading or removal of mishan-

dled paper.

2 Left side door Opens to allow removal of mishandled paper.

3 Relay lever Can be moved downward to ease removal of mis-

handled paper.

4 Paper guides Hold copy paper to fix the position.

5 Paper loading button Pressed to lower the bottom plate to allow paper
