Utility <User Setting>

17-40 bizhub PRO 920

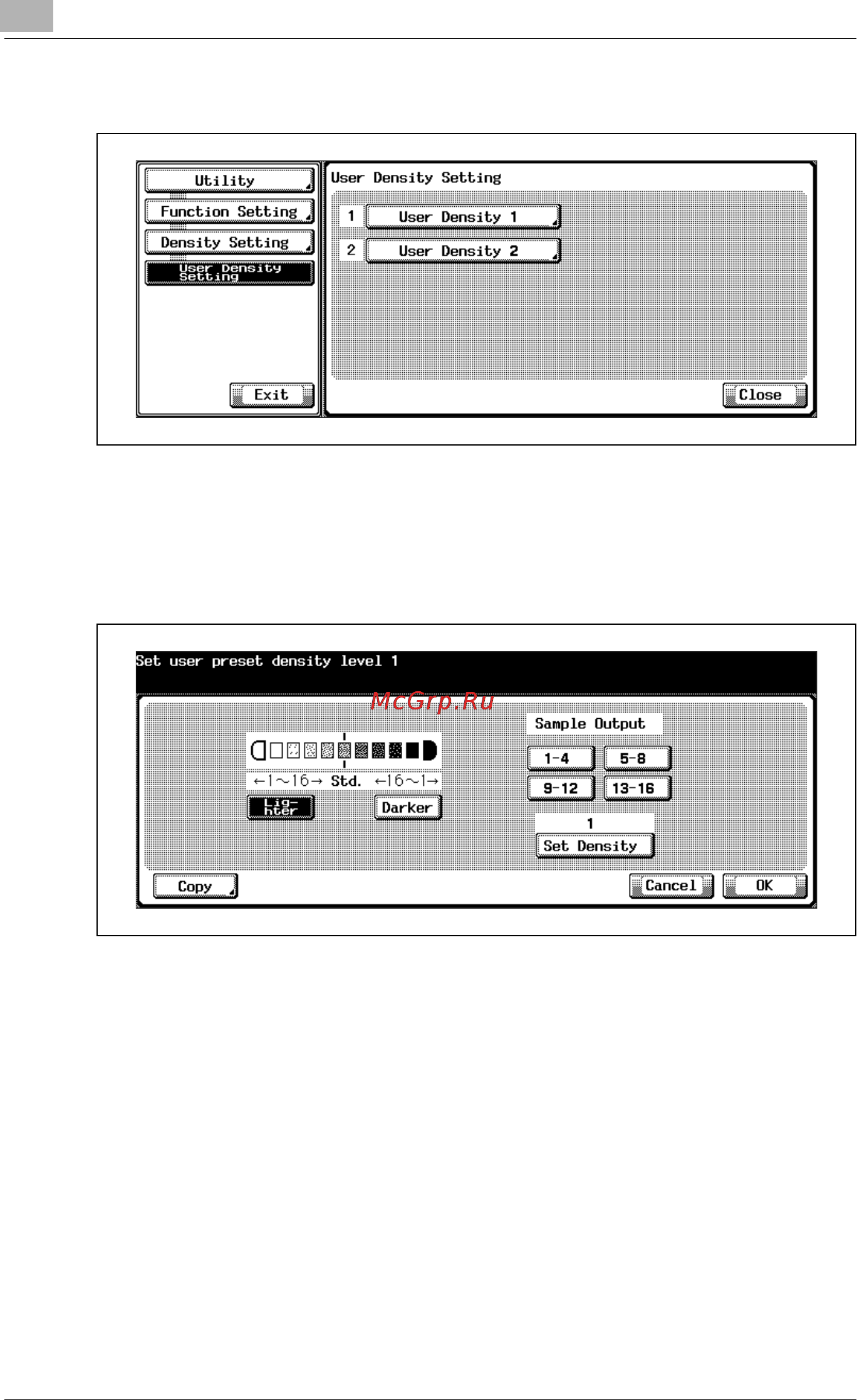

5 Touch [User Density 1] or [User Density 2].

The Set User Preset Density Level Screen will be displayed.

6 Touch [Darker] or [Lighter] to select the desired density level to preset

either between the darkest and normal or between normal and the

lightest.

7 Output density level sample sheet.

Select the sample sheet from each sample output level of [1-4], [5-8],

[9-12], and [13-16], and touch [Copy]. Place the original on the original

glass, and press the [Start] on the control panel.
