Utility <Administrator Setting>

18-64 bizhub PRO 920

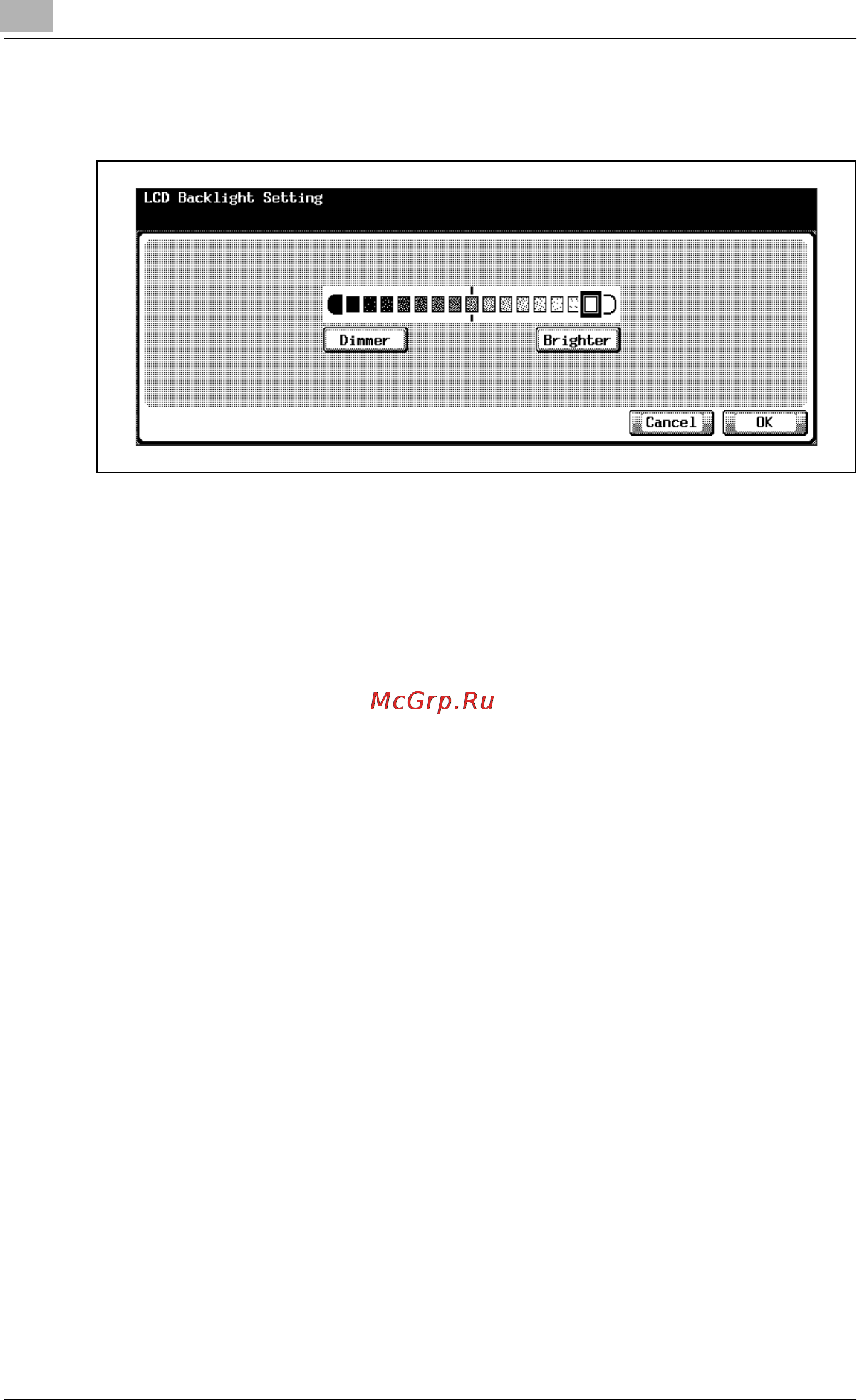

5 Touch [Dimmer] or [Brighter] to set the desired brightness of the touch

panel.

6 Touch [OK] to return to the System Setting Screen.

If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
