Utility <User Setting>

17-54 bizhub PRO 920

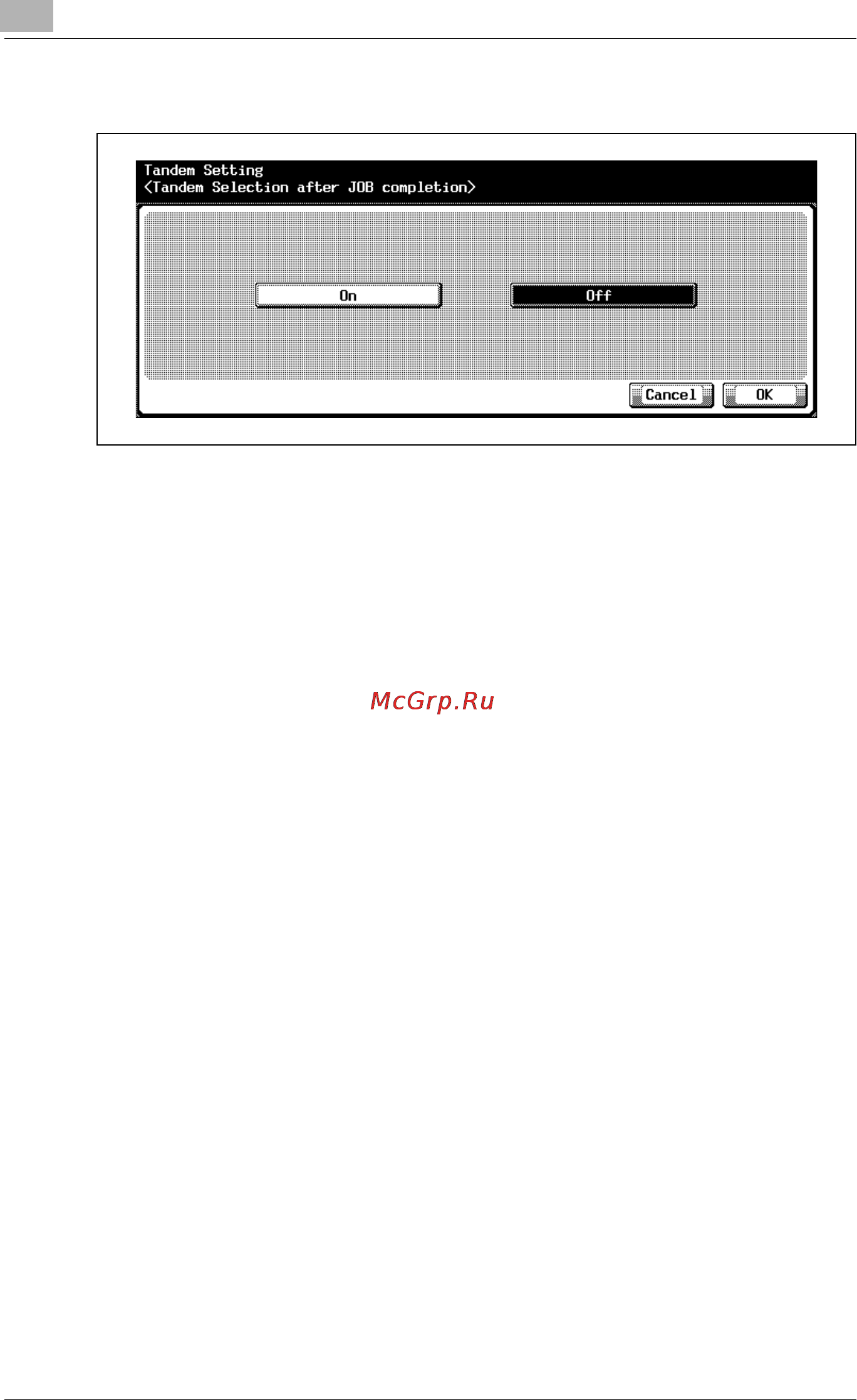

5 Touch [On] or [Off] to highlight it.

– With [On] selected, the two machines will continue to work in

tandem after completion of the tandem job.

– With [Off] selected, the tandem mode will be released after

completion of the tandem job.

6 Touch [OK] to complete the setting and return to the Tandem Setting

Screen.

7 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
