Utility <Administrator Setting>

18-188 bizhub PRO 920

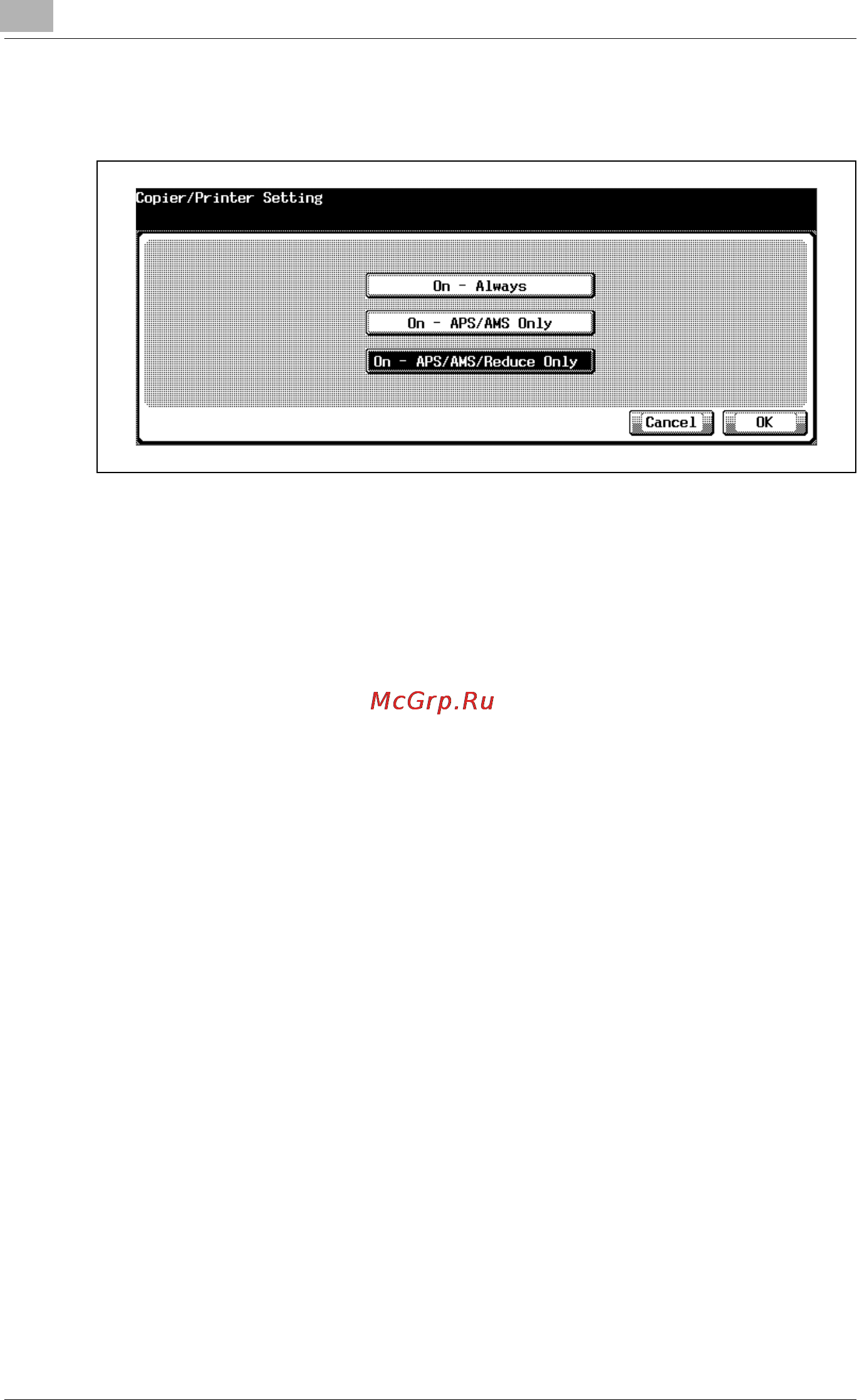

5 Touch [On – Always], [On – APS/AMS Only], or [On – APS/AMS/Reduce

Only] to complete the setting.

6 Touch [OK] to complete the setting and return to the Copier/Printer

Screen.

7 Touch [Close] to complete the setting and return to the Administrator

Setting Screen.

8 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
