Utility <User Setting>

17-30 bizhub PRO 920

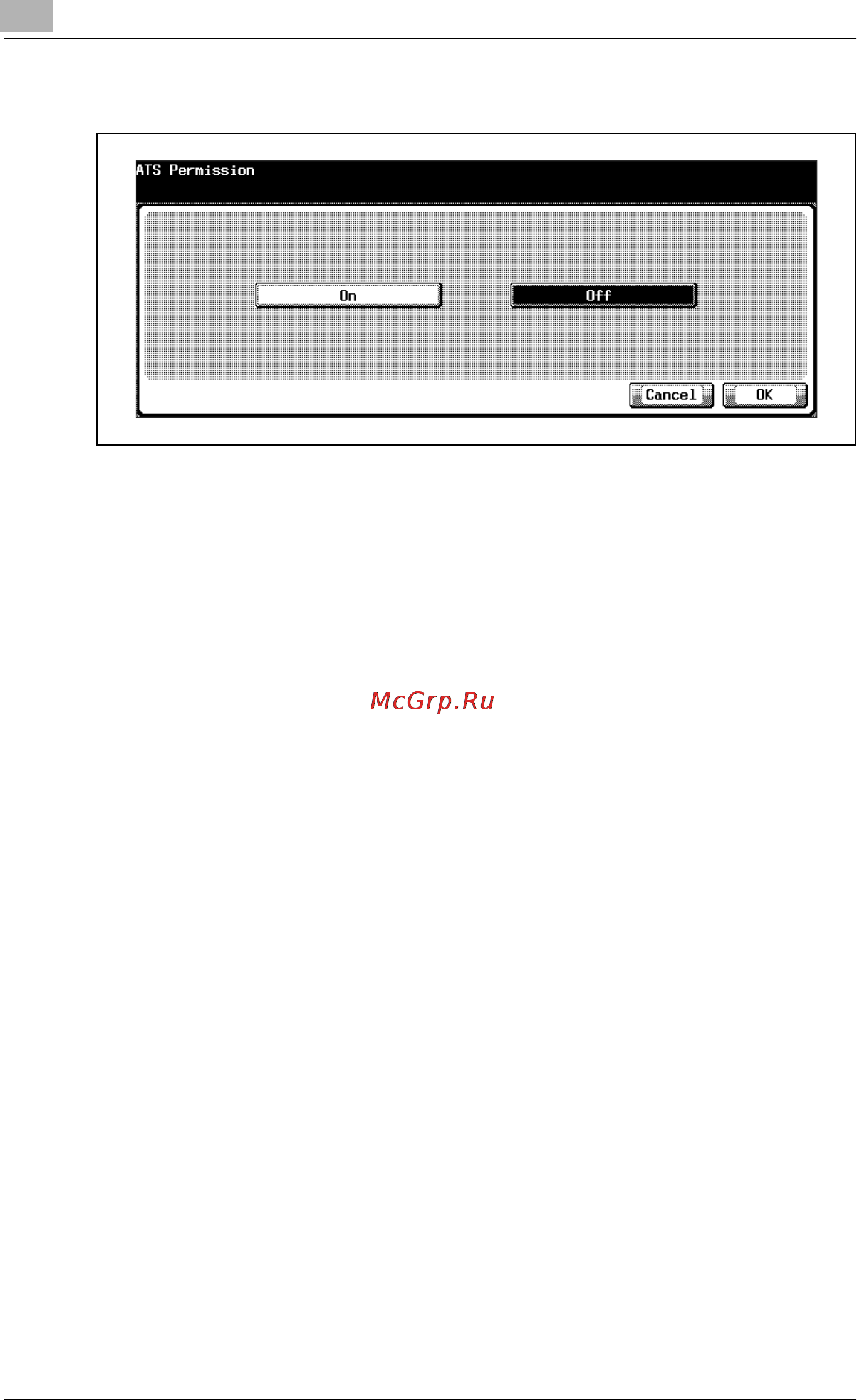

5 Select [On] when ATS is used, and [Off] when ATS is not used.

6 Touch [OK] to complete the setting and return to the Feed Tray Setting

Screen.

7 If further changes are required, touch the desired key.

Touch [Utility] to restore the Utility Screen.
