Advanced Information

14-4 bizhub PRO 920

3 Check the settings made for the current job.

Do you want to change the settings?

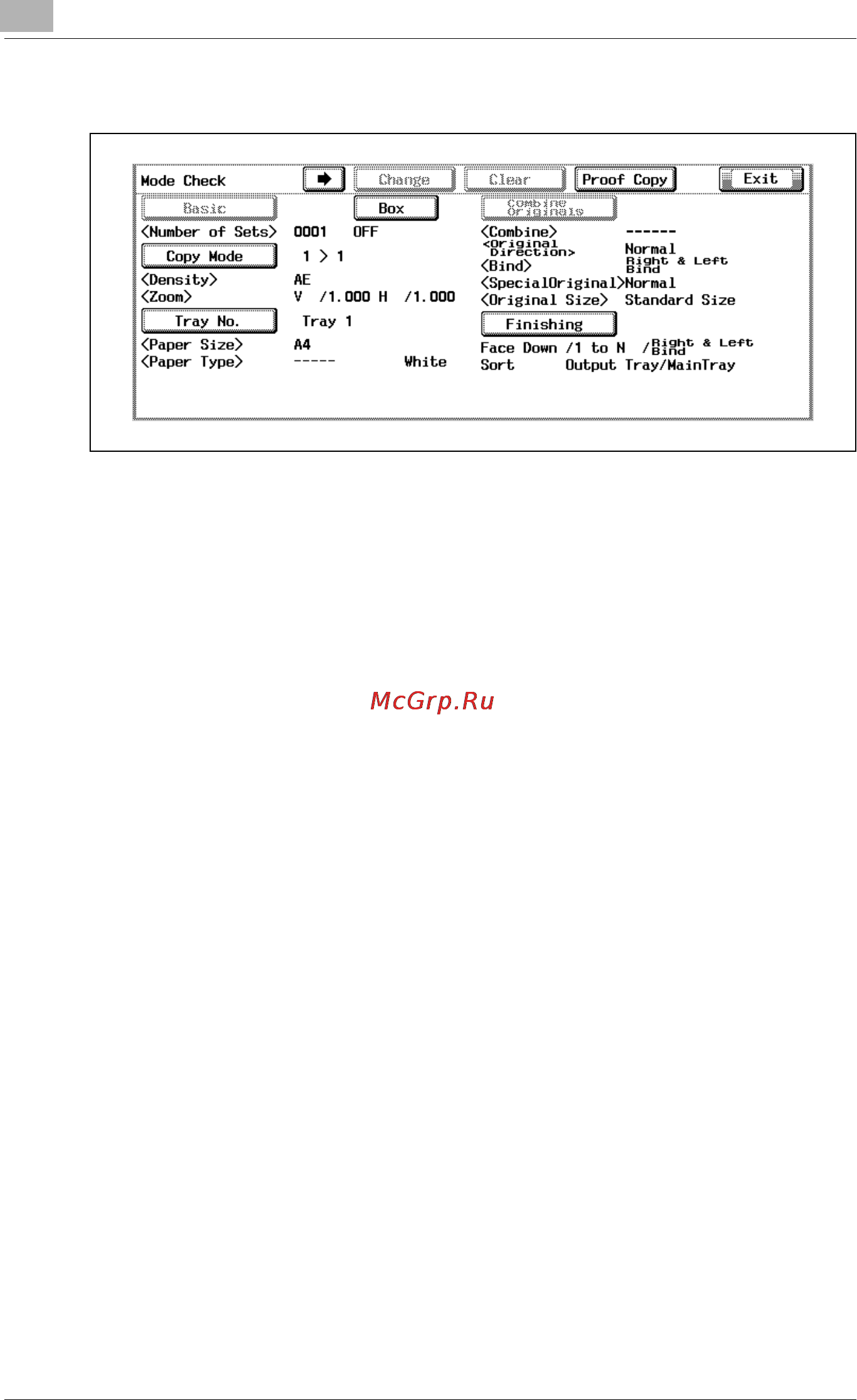

% See "Checking Feature Selections Before Copying (Check Mode)"

on page 14-5 for details.

4 Press [Start].

The machine will start printing.
