Applications

bizhub PRO 920 11-23

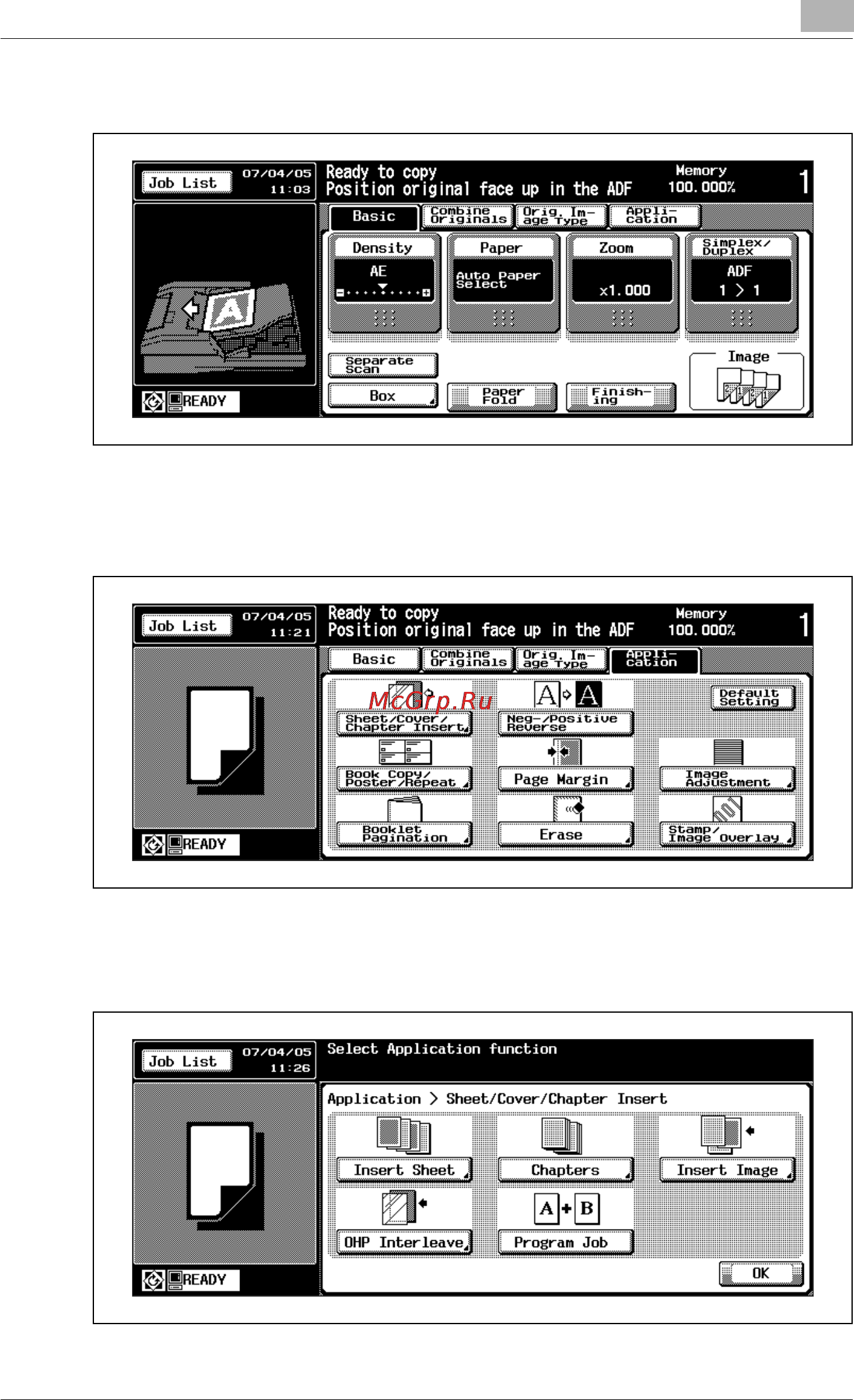

3 Touch [Application].

The Application Screen will be displayed.

4 Touch [Sheet/Cover/Chapter Insert].

The Sheet/Cover/Chapter Insert Screen will be displayed.

5 Touch [OHP Interleave].

The OHP Interleave Screen will be displayed.
