Applications

11-24 bizhub PRO 920

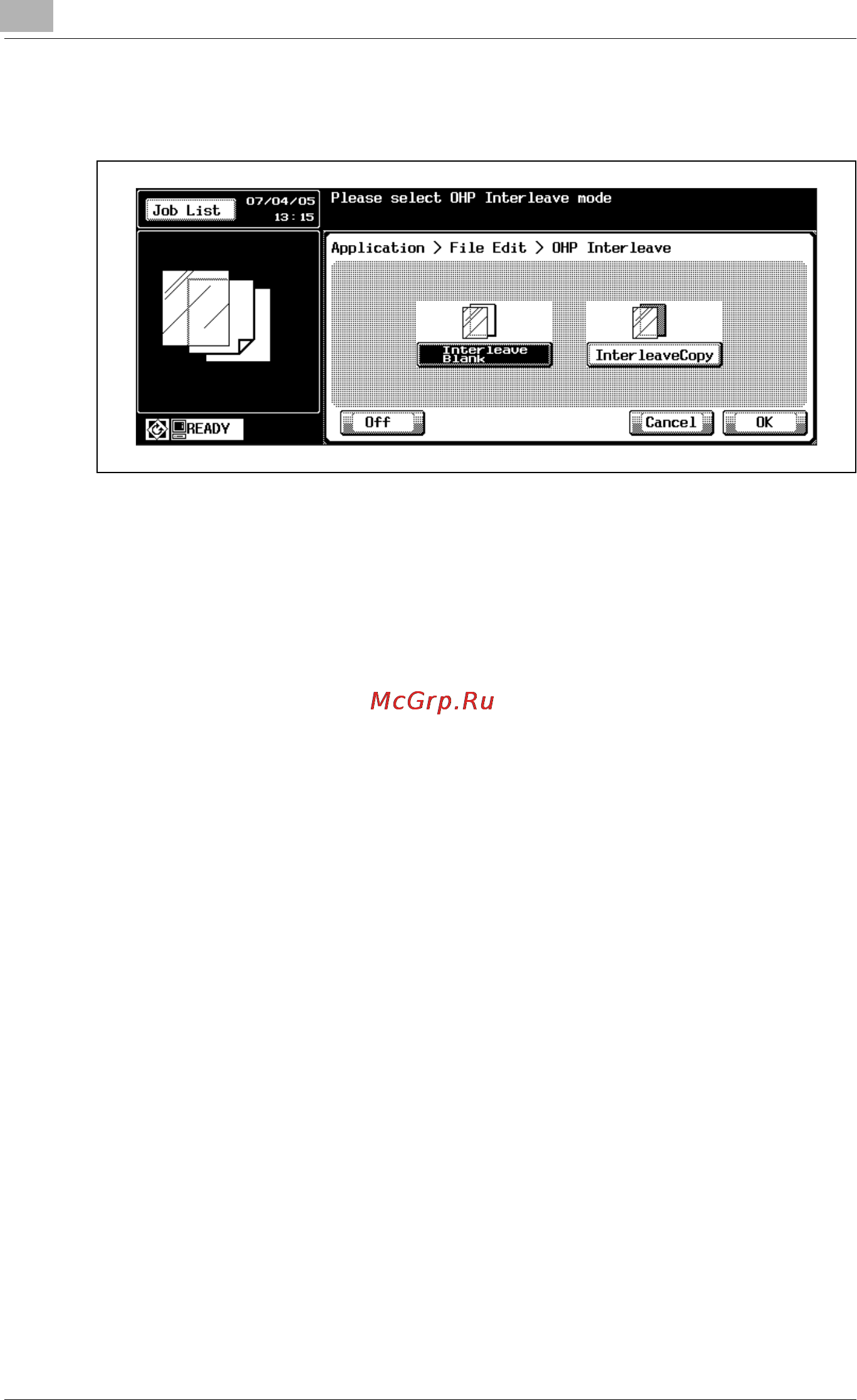

6 Select the desired OHP Interleave mode, then touch [OK] repeatedly till

the Application Screen is restored.

Do you want to cancel changes to the settings?

% Touch [Cancel].

Do you want to cancel the OHP Interleave function?

% Touch [Off].

7 Position original(s), then press [Start].
