Basic Job Settings

9-18 bizhub PRO 920

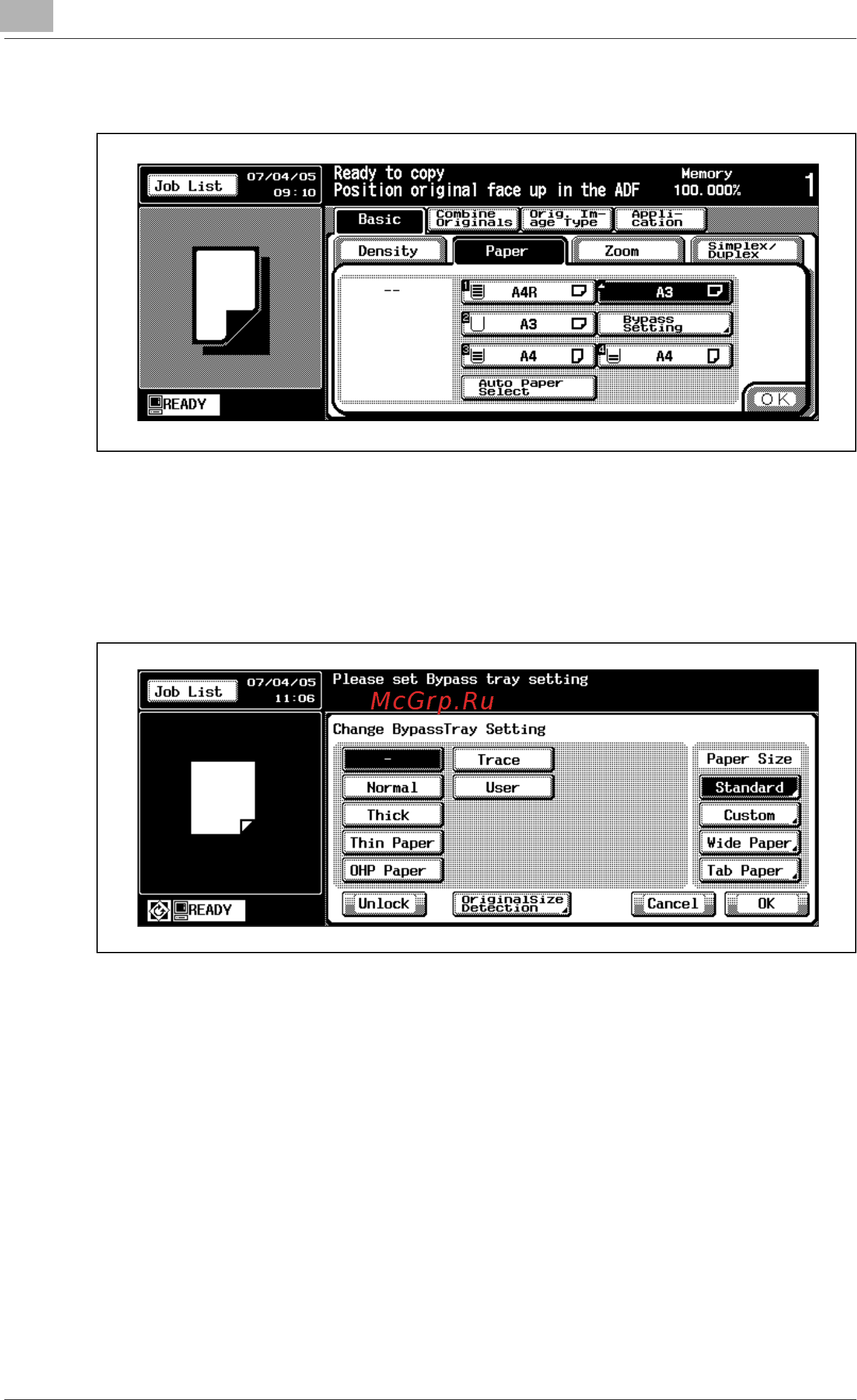

4 Touch [Bypass Setting].

Change Bypass Tray Setting Screen will be displayed.

5 Specify the paper type.

– Touch and highlight the desired paper type key from the seven

types provided on the screen.
