PageScope Web Connection Setting

20-36 bizhub PRO 920

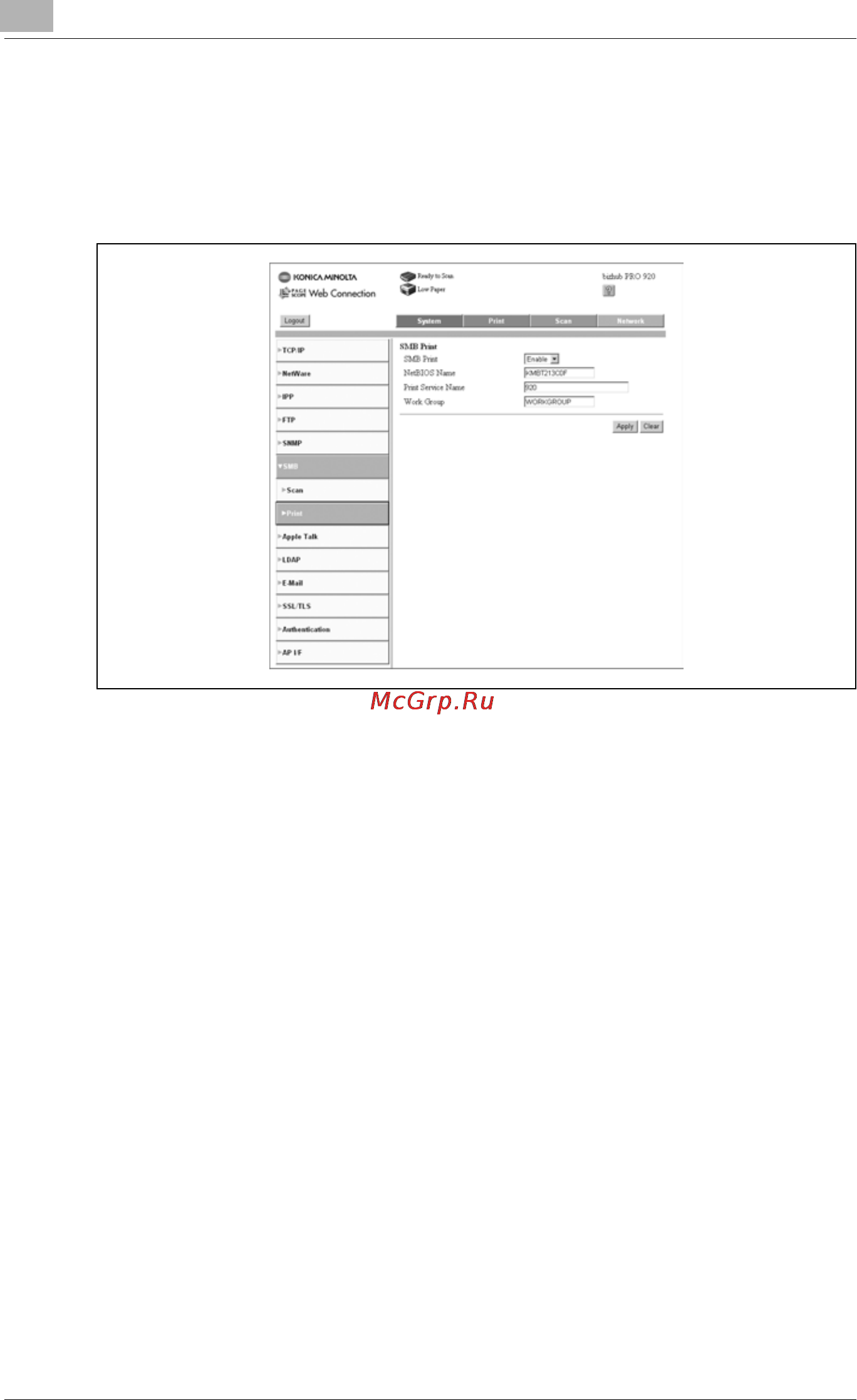

This screen appears when you click [Print] under the [SMB] menu. The

screen is used to enter and confirm settings concerning SMB printing.

When SMB Print is set to disable, you still need to set parameters. Make sure

to enter parameters correctly.

Description

- Enter for individual items.

SMB Print, NetBIOS Name, Print Service Name, Work Group.

- [Apply] button:

Click the button to apply the new settings.

- [Clear] button:

Click the button to clear the settings that were entered.
